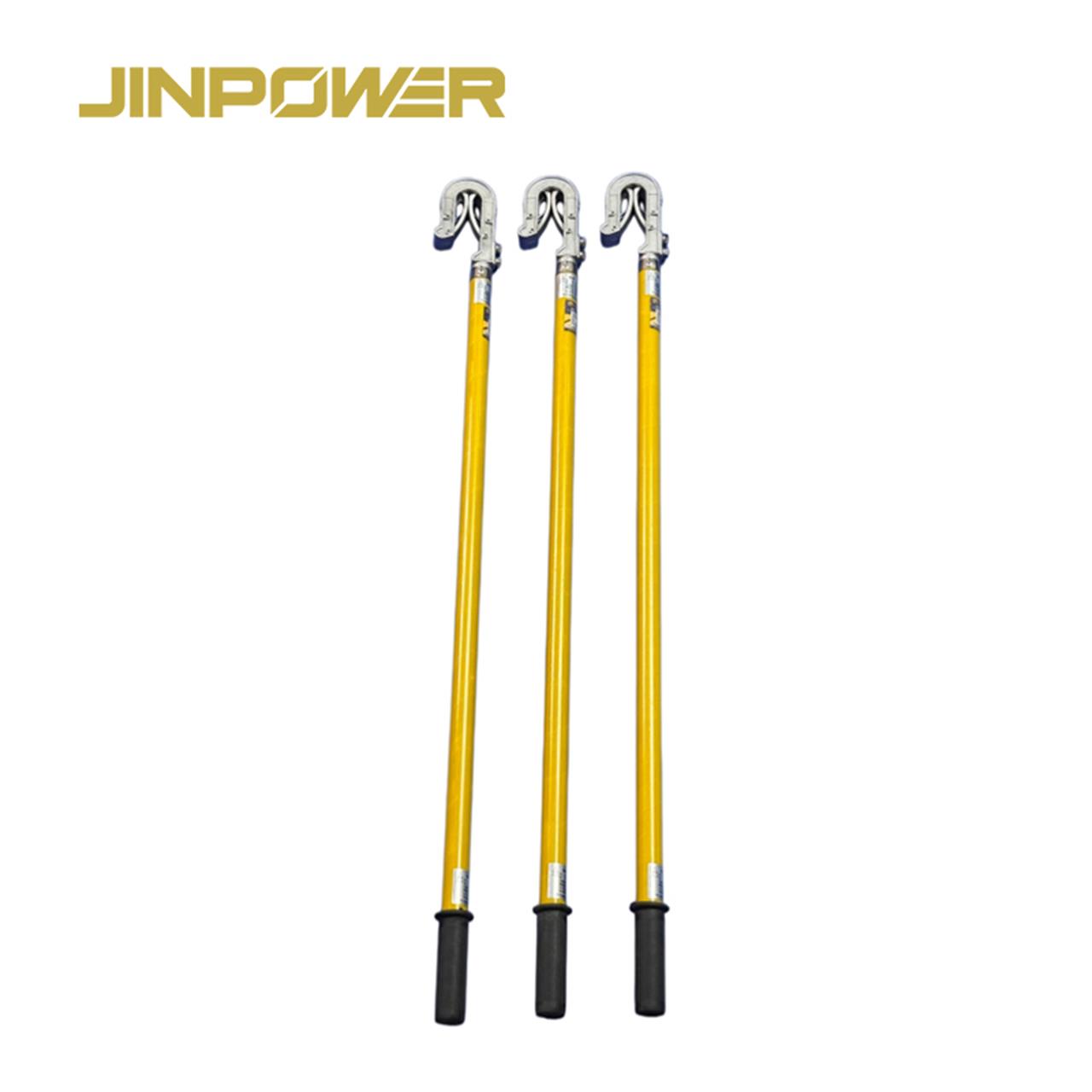

Double-Jaw Spring-Operated Snap-On Earthing Rod

Both telescopic and non-telescopic rod configurations can be considered according to the selected model and project requirements. For utilities, electrical contractors, equipment distributors and project buyers, the main selection factors include clamp opening range, compatible conductor size, rod length, grounding cable configuration and rated short-circuit performance.

Quick Product Facts

• Product Type: Portable Earthing Rod
• Clamp Type: Double-Jaw Spring-Operated Snap-On Phase Clamp
• Jaw Design: Double-Jaw Configuration
• Operating Mechanism: Spring-Operated Opening and Closing
• Main Feature: Quick Attachment to Compatible Conductors
• Primary Application: Specified Overhead Line Earthing
• Rod Configurations: Telescopic and Non-Telescopic
• Key Selection Parameters: Clamp Opening, Conductor Size and Rod Length
• System Application: Temporary Earthing and Short-Circuiting
• Electrical Selection: Based on the Ratings of the Complete Assembly

Technical Specifications

The following specifications cover the main parameters used to evaluate a spring-operated snap-on earthing rod. Dimensions, materials and electrical ratings depend on the selected model and assembly configuration. Confirm the final values against the applicable technical datasheet before ordering.

For an accurate quotation, provide the conductor dimensions, required clamp opening, operating rod length, rod configuration and applicable electrical ratings. If your project requires a specific grounding cable or complete earthing set, identify the required components in the inquiry.

Telescopic vs Non-Telescopic Earthing Rod

The spring-operated snap-on phase clamp can be configured with a telescopic or non-telescopic rod where the selected model supports both options. The appropriate choice depends on the required operating reach, available working space, transport dimensions and project specifications.

When to Choose a Non-Telescopic Rod

A non-telescopic rod may be suitable for projects that specify a fixed operating length. Buyers should confirm the overall length, access to the intended connection point and handling requirements before selecting this configuration.

When to Choose a Telescopic Rod

A telescopic rod may be suitable when an extendable structure is required to meet the specified operating reach and transport dimensions. Confirm the extended length, retracted length, number of sections and locking mechanism against the actual model specification.

The rod structure does not, by itself, determine the electrical rating of the equipment. Both versions must meet the applicable electrical and insulation requirements for their intended use.

Double-Jaw Spring-Operated Snap-On Clamp Design

The defining features of this product are its double-jaw clamp configuration and spring-operated opening and closing mechanism. These features distinguish it from screw-operated flat-jaw and round-jaw phase clamps. The snap-on design is intended for quick attachment to compatible overhead line conductors within the specified operating range.

Double-Jaw Configuration

The double-jaw configuration forms the conductor-contacting part of the phase clamp. Its actual geometry, opening range and contact surfaces determine which conductor sizes and connection points are compatible with the selected model.

The term "double-jaw" describes the clamp configuration; it does not automatically establish a higher clamping force or a greater electrical rating. Confirm the actual dimensions and intended application against the product documentation.

Spring-Operated Opening and Closing

The spring-operated mechanism allows the clamp jaws to open and close according to the product's design. This supports quick attachment to a compatible conductor without the step-by-step screw tightening used by screw-operated clamps.

The permitted attachment and release methods must follow the manufacturer's instructions. Do not assume that the mechanism can be operated in any direction or under any site condition. The approved operating method and any required operating tool must be confirmed for the selected model.

Quick Attachment for Specified Applications

The snap-on mechanism is intended to simplify the attachment process where quick connection is required. Compared with a screw-operated design, it reduces the need for manual screw adjustment during attachment.

Quick attachment does not remove the need to verify conductor compatibility, inspect the clamp and confirm the electrical ratings of the complete assembly. The connection must be established and checked according to the manufacturer's instructions and the approved site procedure.

Connection to the Operating Rod

The phase clamp is connected to the operating rod as part of the selected earthing configuration. Confirm the connection interface, rod structure, supplied components and approved operating arrangement against the model documentation.

If your project requires a specific operating reach or clamp arrangement, include these requirements in the inquiry. A product drawing or photograph of the intended connection point can help clarify the configuration before an order is confirmed.

Typical Applications of Spring-Operated Snap-On Earthing Rods

Overhead Line Maintenance

The spring-operated snap-on clamp is intended for overhead line conductors that fall within the specified conductor range. Its quick-attachment mechanism may be useful where the approved work method requires a suitable clamp to be attached to a compatible conductor.

Before selecting the product, confirm the conductor dimensions, clamp opening, required operating reach and connection arrangement. Do not assume that a clamp designed for one conductor size is suitable for every overhead line conductor.

Temporary Earthing and Short-Circuiting

The snap-on phase clamp may form part of a portable temporary earthing and short-circuiting assembly when the complete configuration is rated for the intended application.

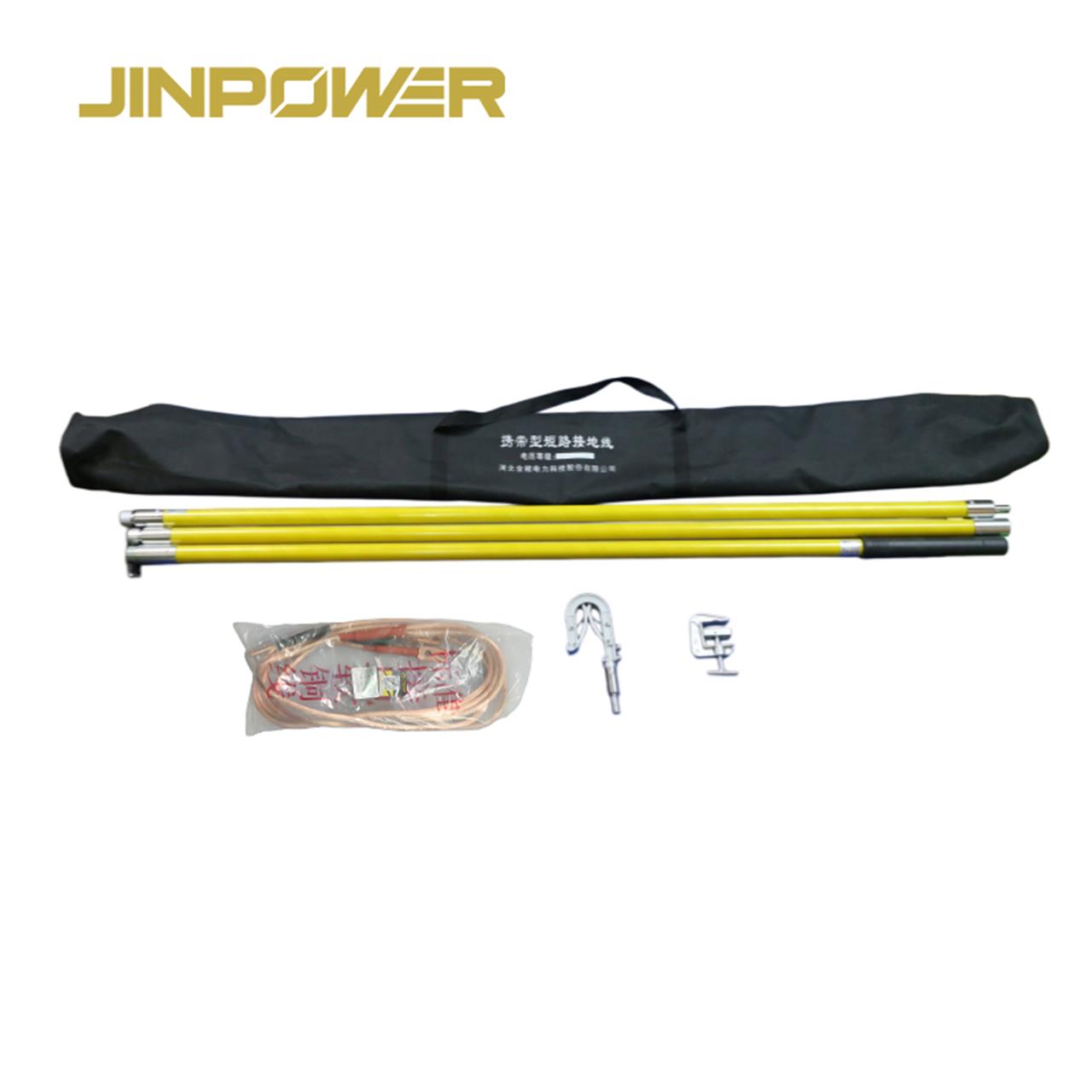

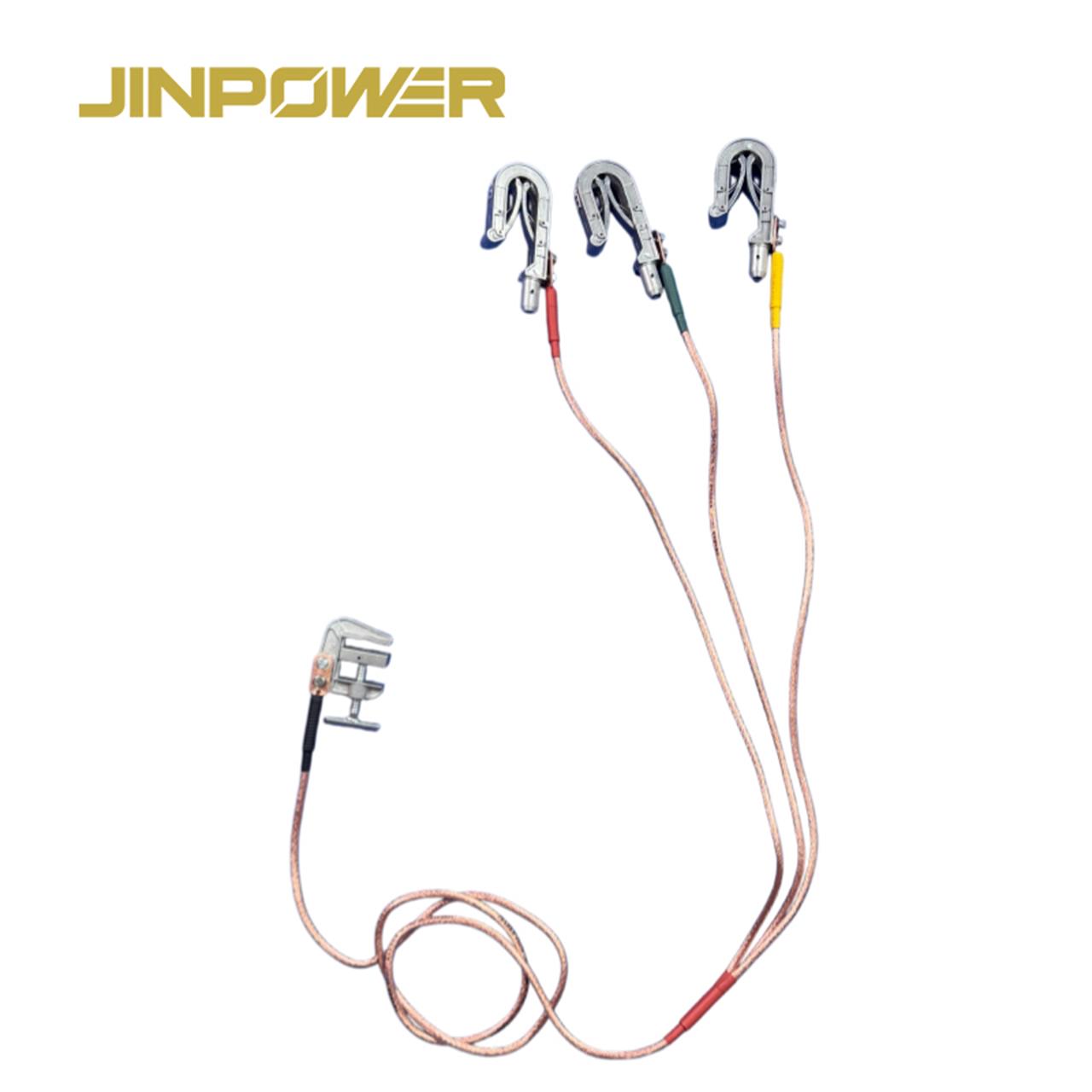

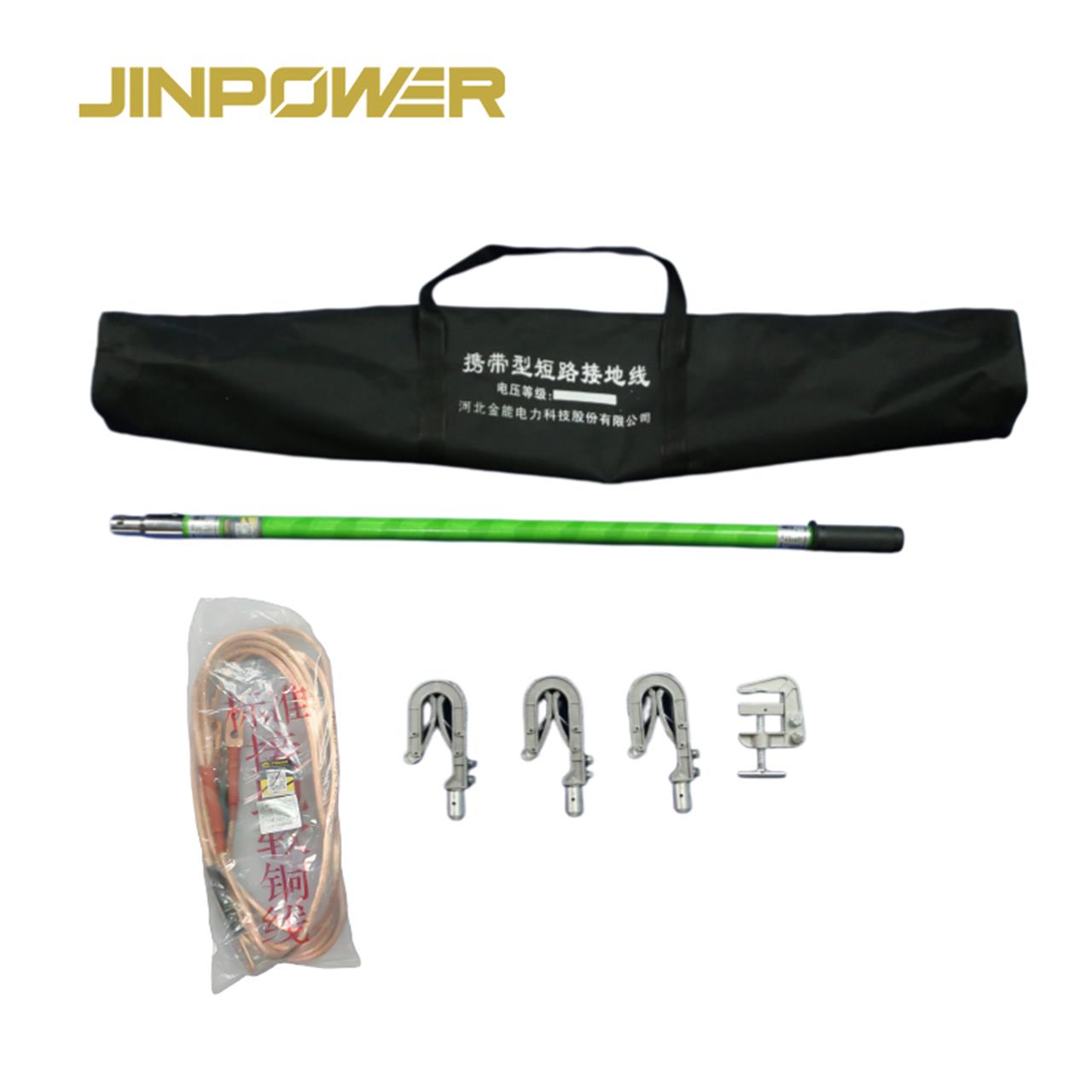

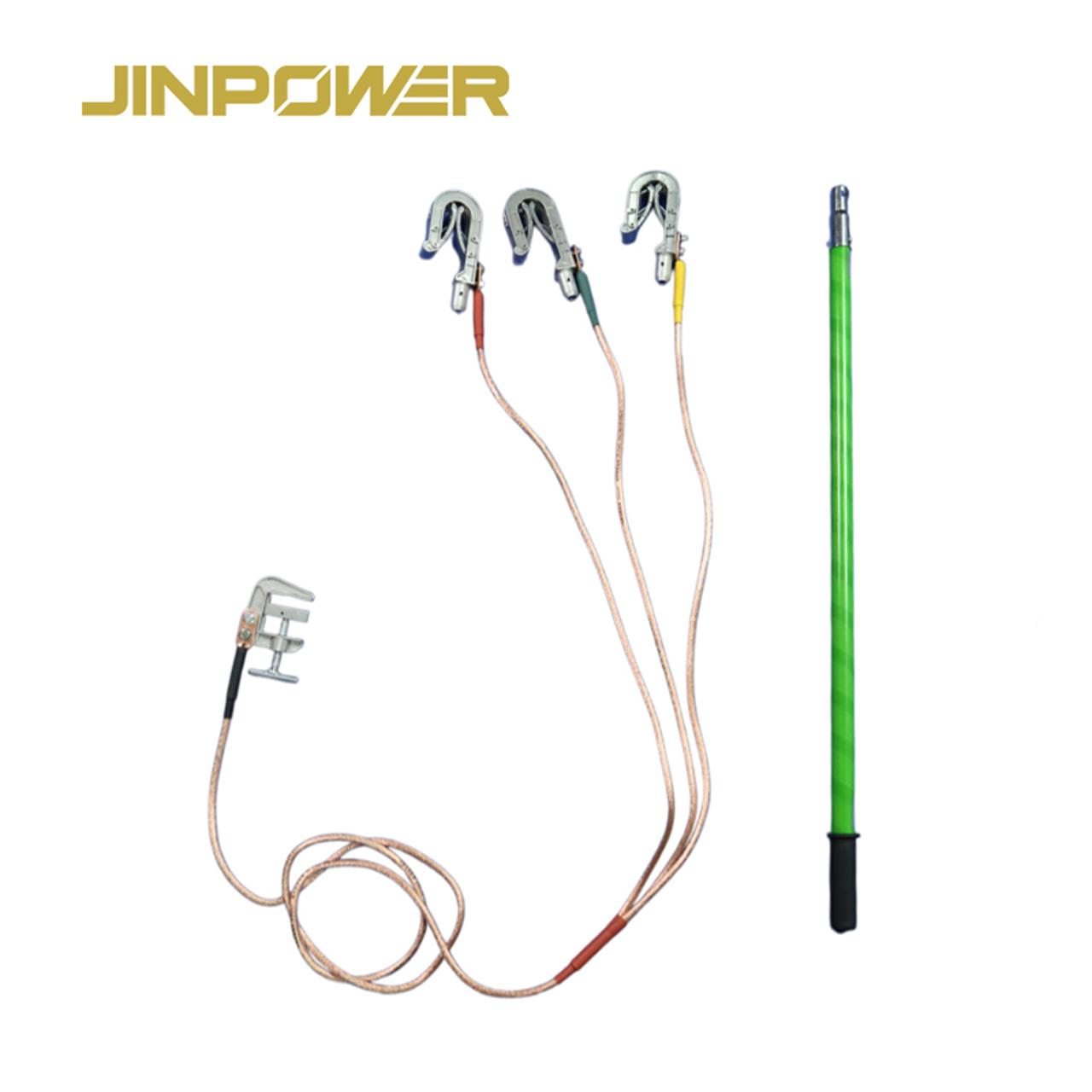

The assembly may include phase clamps, operating rods, grounding cables and grounding clamps, depending on the selected configuration. Confirm the supplied scope and the electrical rating of the complete assembly before purchasing.

For projects requiring a complete grounding arrangement, see our Portable Earthing and Short-Circuiting Set.

Utility and Electrical Maintenance Projects

Utilities and electrical contractors may require different earthing configurations for overhead line maintenance and other specified electrical work. The snap-on design can be considered where its conductor compatibility, operating method and electrical ratings match the project requirements.

For procurement teams, the key is to match the equipment to the actual work arrangement rather than selecting it solely because it offers quick attachment. Confirm the required rod length, clamp dimensions, grounding cable specification and supporting technical documents before order approval.

Substation Maintenance Where the Connection Is Approved

Substation work involves a range of conductor arrangements and connection points. This clamp should be considered only where the intended connection point and conductor dimensions are compatible with the selected model and its approved application.

A snap-on clamp should not be treated as a universal replacement for flat-jaw or round-jaw clamps. The correct choice depends on the actual connection geometry, operating method and electrical requirements.

Spring-Operated Snap-On Clamp vs Screw-Operated Clamp

Spring-operated and screw-operated phase clamps use different mechanisms to establish a connection. The choice should be based on the intended conductor, clamp geometry, approved operating method and electrical requirements of the complete assembly.

Neither mechanism is automatically superior for every application. Select the clamp that matches the specified conductor and work arrangement, and verify the complete assembly's electrical ratings and operating requirements.

How to Select the Right Spring-Operated Earthing Rod

1. Identify the Conductor and Connection Point

Identify the overhead line conductor or other approved connection point for the intended application. Record the conductor dimensions and relevant connection details before choosing the clamp.

If the connection point is unusual or its dimensions are unclear, provide a photograph or dimensional drawing for review. Do not select the clamp based on appearance alone.

2. Confirm the Clamp Opening Range

Compare the conductor dimensions with the manufacturer's specified clamp opening and compatible conductor range. The clamp must be designed for the intended conductor and connection arrangement.

If the available datasheet does not specify the opening range, request the relevant dimensions before approving the model.

3. Verify the Spring Mechanism and Operating Method

Confirm how the spring-operated mechanism is intended to open, attach and release. Follow the manufacturer's instructions and the approved site procedure.

Do not assume that the spring mechanism can be modified, manually forced or operated using an unapproved method. If the project specifies a particular attachment method, confirm that the selected model supports it.

4. Select the Rod Structure and Length

Choose a telescopic or non-telescopic configuration according to the required operating reach, access conditions, handling requirements and transport dimensions.

For telescopic models, confirm the extended length, retracted length, section count and locking mechanism. For fixed-length models, confirm the overall length and the required working arrangement.

5. Confirm the Grounding Cable Configuration

Confirm whether the grounding cable is included in the selected assembly. If required, specify the cable length, conductor cross-section, connection details and any project-specific requirements.

The phase clamp, grounding cable and grounding connections must be compatible with the intended application and the electrical rating of the complete assembly.

For cable-related requirements, see our Grounding Cable product range.

6. Check the Electrical Ratings

Confirm the rated short-circuit current, short-circuit duration and applicable insulation requirements of the complete earthing assembly. These parameters must meet the electrical requirements of the intended application.

The presence of a spring-operated mechanism does not establish the electrical performance of the product. Request the applicable technical documents before approving the selected configuration.

7. Review Technical Documents Before Ordering

For project procurement, confirm the technical datasheet, dimensional drawing, applicable electrical ratings and required test records. Ensure that the documents match the exact model and complete assembly being supplied.

Electrical Ratings and Compatibility

Mechanical compatibility and electrical performance are separate selection requirements. A clamp may fit the conductor dimensions but still be unsuitable if the complete earthing assembly does not meet the required electrical duty.

Conductor Compatibility

The clamp opening and jaw geometry must match the actual conductor and the manufacturer's specified operating range. Verify the conductor dimensions and connection arrangement before selecting the model.

Rated Short-Circuit Current and Duration

Temporary earthing and short-circuiting equipment must be selected according to the required fault-current conditions. The rated short-circuit current and permitted duration should be supported by the applicable technical documentation.

Do not assume that two clamps with similar shapes or dimensions have the same short-circuit performance. Confirm the rating of the complete assembly rather than evaluating the phase clamp alone.

Insulating Rod Requirements

The insulating rod's performance must be supported by the technical specification and applicable test requirements for the selected model. Total rod length alone does not establish electrical suitability.

For telescopic models, confirm the applicable requirements for the complete rod and its approved operating configuration.

Quality Inspection and Technical Documentation

For utility, contractor and distributor orders, inspection should cover the mechanical configuration and the electrical requirements specified for the product. The inspection plan should follow the selected model, applicable requirements and project acceptance criteria.

Mechanical Inspection

Mechanical inspection may include checking the clamp jaws, spring mechanism, rod dimensions, connection interfaces and supplied components. The inspection criteria should follow the approved drawing, specification and manufacturer's instructions.

Electrical Performance Verification

Where required, verify the applicable electrical performance tests and supporting records for the selected assembly. Visual inspection and mechanism checks alone do not establish the product's electrical suitability.

Documentation for Project Acceptance

Depending on the project, required documents may include a technical datasheet, dimensional drawing, electrical ratings, applicable test reports and inspection records. Confirm the available documentation and its scope before order approval.

Safety Requirements for Temporary Earthing

Portable earthing equipment must be selected and used by trained and authorized personnel in accordance with the manufacturer's instructions, applicable electrical safety requirements and the approved site procedure.

Isolation and Voltage Verification

Required isolation and voltage verification must be completed according to the approved work procedure before the relevant work proceeds. The presence of a grounding rod does not replace the required isolation, verification or other site safety controls.

Where voltage detection is required, see our High Voltage Detector range for related electrical safety equipment.

Correct Clamp Application

Use the clamp only on connection points compatible with its dimensions and approved application. Follow the manufacturer's instructions for operating the spring mechanism and applying the complete earthing assembly.

Do not assume that a quick attachment is sufficient to establish a suitable electrical connection. Compatibility, equipment condition and the electrical rating of the complete assembly must all be verified.

Inspection Before Use

Inspect the clamp jaws, spring mechanism, insulating rod and any supplied grounding components according to the manufacturer's instructions. Damaged or defective equipment should be removed from service until it has been evaluated by qualified personnel.

This product description does not imply suitability for live-line contact. Use the equipment only within its approved application and the applicable electrical safety procedure.

Related Grounding and Electrical Safety Products

Depending on your project requirements, JINPOWER also supplies related grounding equipment and components for specified electrical safety applications.

• Portable Earthing and Short-Circuiting Set — for projects requiring a complete temporary earthing and short-circuiting assembly.
• Grounding Cable — for grounding cable specifications and compatible connection requirements.
• High Voltage Detector — for voltage verification as part of an approved electrical safety procedure.

What Should You Include in Your RFQ?

Providing the technical details at the inquiry stage helps reduce specification gaps and unnecessary quotation revisions. For project orders, include the conductor dimensions, required operating reach and electrical requirements of the complete earthing assembly.

If the connection point has non-standard dimensions or a specific clamp requirement, include a drawing or photograph with the inquiry. This helps clarify the required configuration before quotation and order confirmation.

Frequently Asked Questions

What Is a Double-Jaw Spring-Operated Snap-On Earthing Rod?

It is a portable earthing rod equipped with a double-jaw phase clamp that uses a spring-operated opening and closing mechanism. It is intended for specified temporary earthing applications where the conductor dimensions, operating method and electrical ratings match the selected assembly.

What Is the Main Advantage of a Spring-Operated Snap-On Clamp?

The spring-operated mechanism supports quick attachment without the step-by-step screw tightening used by screw-operated clamps. The permitted operating method and actual application must follow the manufacturer's instructions.

Can This Clamp Be Used on Every Overhead Line Conductor?

No. Suitability depends on the conductor dimensions, clamp opening, jaw geometry and electrical requirements of the complete assembly. Confirm the compatible conductor range using the technical specification before selecting the product.

What Is the Difference Between a Snap-On Clamp and a Screw-Operated Clamp?

A snap-on clamp uses a spring-operated opening and closing mechanism for quick attachment. A screw-operated clamp uses a screw mechanism to adjust the clamping position. The correct choice depends on the intended conductor, clamp design, approved operating method and electrical requirements.

What Is the Difference Between Telescopic and Non-Telescopic Versions?

A non-telescopic rod has a fixed-length structure, while a telescopic rod uses extendable sections. Select the configuration according to the required operating reach, transport dimensions and actual product specifications.

Is the Grounding Cable Included?

The supplied components depend on the ordered configuration. Confirm whether the quotation covers the rod and phase clamp only or a complete assembly with grounding cable, grounding clamps and other required components.

What Electrical Ratings Should I Confirm Before Purchasing?

Confirm the rated short-circuit current, short-circuit duration, applicable insulation requirements and other parameters specified by the project. These requirements must be supported by the technical documentation for the selected assembly.

Does Quick Attachment Mean the Clamp Has a Higher Electrical Rating?

No. The attachment mechanism describes how the clamp operates, not its electrical rating. Electrical suitability must be verified against the applicable ratings and documentation for the complete earthing assembly.

Can This Product Be Used for Live-Line Work?

Do not assume that this product is suitable for live-line applications. Use it only within its explicitly approved application and follow the applicable electrical safety procedure and manufacturer's instructions.

What Documents Should I Request Before Bulk Purchasing?

Depending on the project, request the technical datasheet, dimensional drawing, electrical ratings and applicable test or inspection records. Confirm that the documents correspond to the exact model and assembly being supplied.

What Information Is Needed for a Quotation?

Provide the conductor dimensions, required clamp opening, rod structure, required length, grounding cable requirements, electrical ratings, quantity and project standards. A drawing or photograph of the intended connection point is also useful when available.

Request a Quote for Spring-Operated Snap-On Earthing Rods

If you are sourcing double-jaw spring-operated snap-on earthing rods for overhead line maintenance or other specified temporary earthing applications, contact JINPOWER with your project requirements.

Please provide the required rod structure, operating length, conductor dimensions, clamp opening, grounding cable configuration, rated short-circuit current and duration, and applicable project requirements.

For non-standard connection points, include a dimensional drawing or photograph to help clarify the required clamp configuration. JINPOWER can review the requested specifications and available technical documentation before quotation and order confirmation.
