Portable Boxed Warning Tape Reel for Temporary Safety Barriers

For buyers, the main questions are simple: How wide should the tape be? Do you need a reflective version? How much area do you need to cover? And will the reel be used indoors, outdoors or moved between different work zones?

Key Product Features

• 48–150m warning tape length, depending on the selected configuration
• 4cm or 5cm tape width
• Polyester and Reflective Polyester options
• Reinforced ABS reel housing
• Manual rewind design for easier tape recovery
• Integrated carry handle for field transport
• Helps reduce tangling compared with loose warning tape rolls
• Designed for reusable temporary area marking
• Suitable for electrical, utility, industrial and construction work zones

Quick Technical Specifications

Which Configuration Should You Choose?

4cm or 5cm Warning Tape: Which One Makes More Sense?

The width mainly affects visibility and how much space you have for warning graphics or text.

There is no need to choose 5cm just because it is wider. The right option depends on the size of the work area, viewing distance and how visible you want the warning line to be.

Standard Polyester or Reflective Polyester?

Standard Polyester

Standard Polyester works well for normal daylight, indoor electrical rooms, warehouses and general maintenance zones where visibility is already good.

Reflective Polyester

Reflective Polyester is useful when the work area may be dim, used during evening maintenance or exposed to changing lighting conditions.

The reflective option can make the barrier easier to notice when light reaches the tape, but it should not be treated as a certified traffic-reflective device unless a specific reflective performance report is supplied for the selected product.

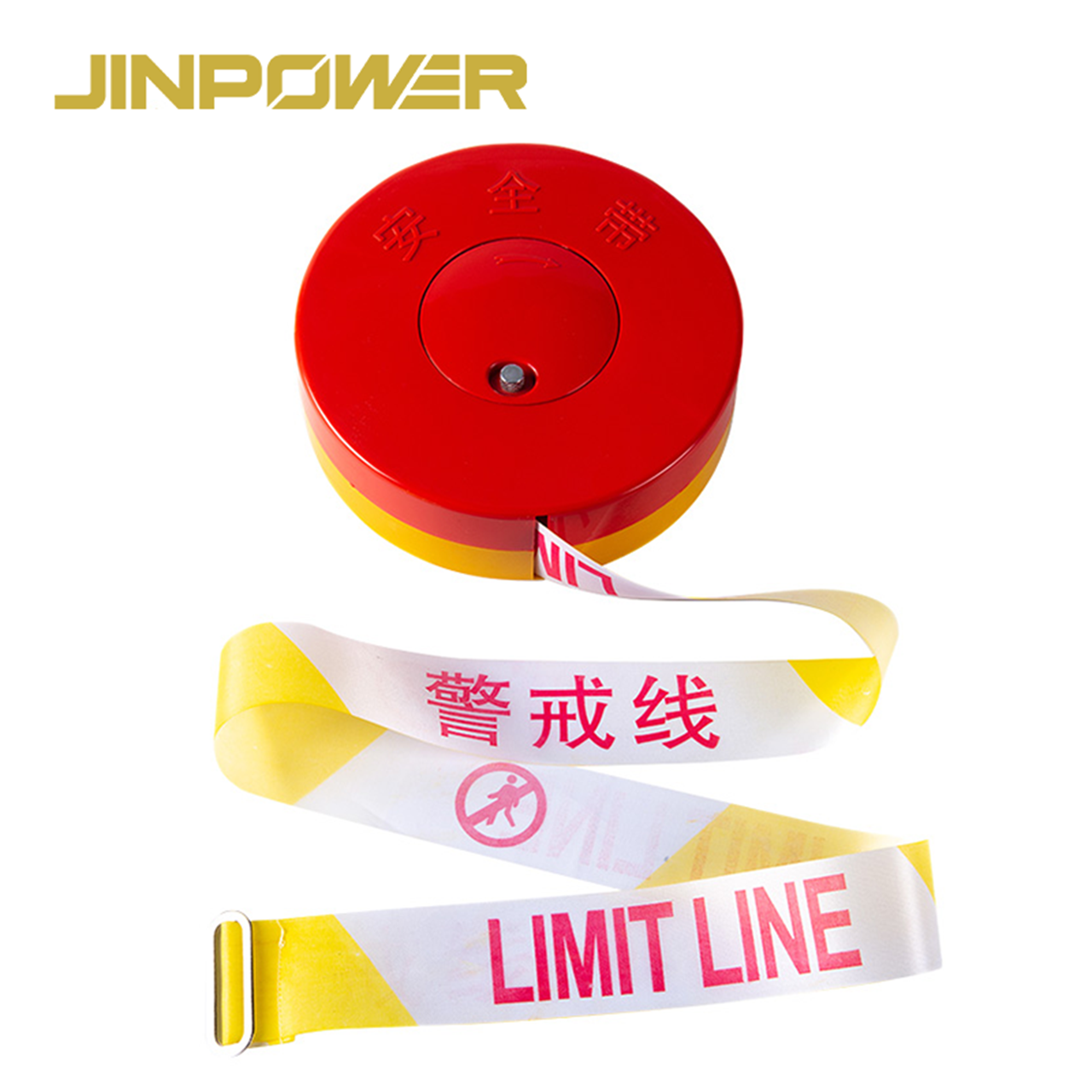

What Is a Boxed Warning Tape Reel?

A Boxed Warning Tape Reel is basically a long reusable warning tape stored inside a portable protective housing.

Instead of carrying a loose roll, tying the tape around equipment and then trying to roll everything back up by hand, you carry one compact reel to the work area, pull out the amount of tape you need and rewind it when the job is finished.

This makes it especially useful when the same maintenance team regularly needs to create temporary restricted areas around substations, cable work, industrial equipment or construction zones.

Why Use a Boxed Reel Instead of Loose Warning Tape?

Easier to Carry

The integrated handle makes it easier to move a long length of tape from one work area to another without carrying a loose roll.

Less Tangling

Long warning tape can easily twist, knot or drag on the ground. Keeping the unused portion inside the reel helps your team manage the tape in a cleaner way.

Cleaner Rewind

Once the work is complete, the manual crank helps wind the tape back into the housing instead of leaving the crew to wrap dozens of meters of tape by hand.

Better for Repeated Use

For utility crews, industrial maintenance teams and contractors who set up temporary boundaries again and again, a reel system is often easier to manage than repeatedly replacing disposable tape.

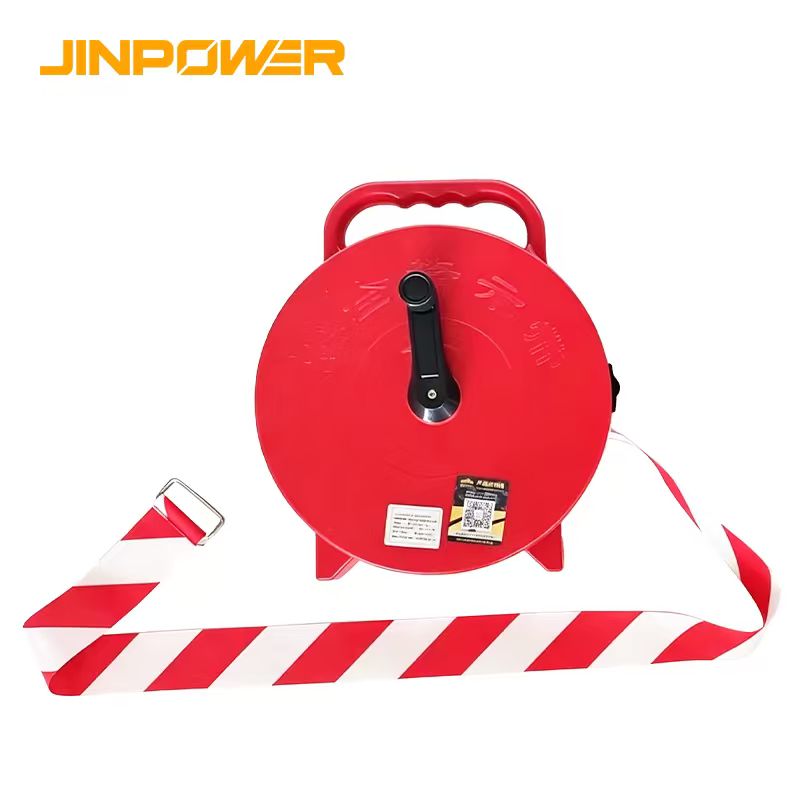

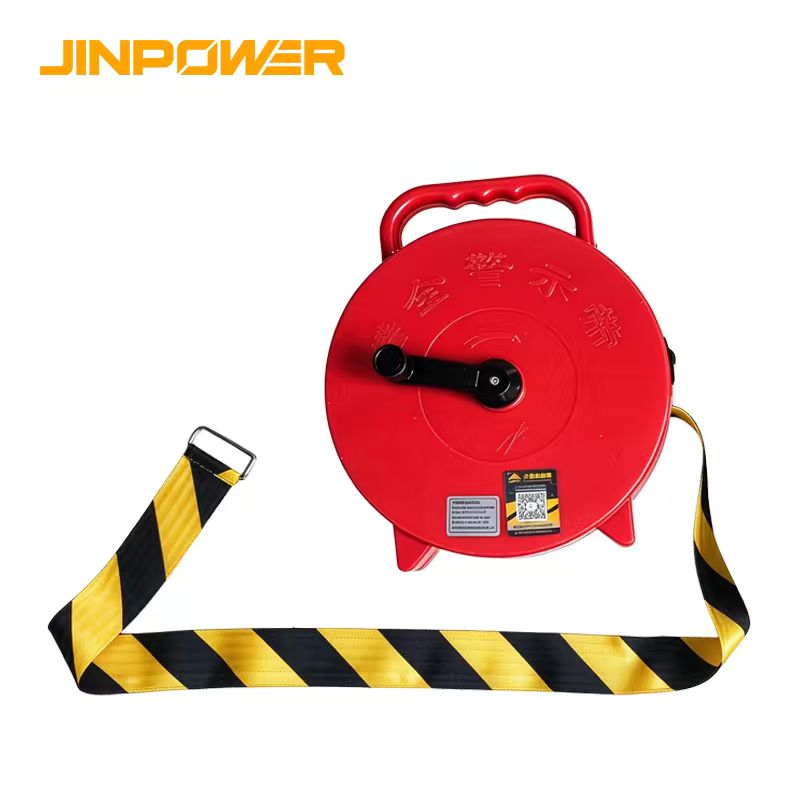

Main Product Structure

Reinforced ABS Housing

The tape is stored inside a reinforced injection-molded ABS housing. The housing helps protect the tape during transport, storage and normal field handling.

It also helps keep the reel more organized when the product is carried between different maintenance locations.

Manual Rewind Crank

The reel uses a manual rewind design. After the barrier is no longer needed, the operator can use the crank to bring the tape back into the housing in a controlled way.

This is different from the spring-loaded automatic retraction used on short magnetic barrier belts.

Integrated Carry Handle

The built-in handle makes the reel easier to carry around substations, construction areas, factories and utility sites.

Polyester Warning Tape

Polyester tape provides a reusable visual boundary for temporary restricted areas. Different width and visibility options are available depending on the selected configuration.

Reflective Polyester Option

The 5cm configuration can also be supplied in Bright Reflective Polyester where stronger visibility is needed.

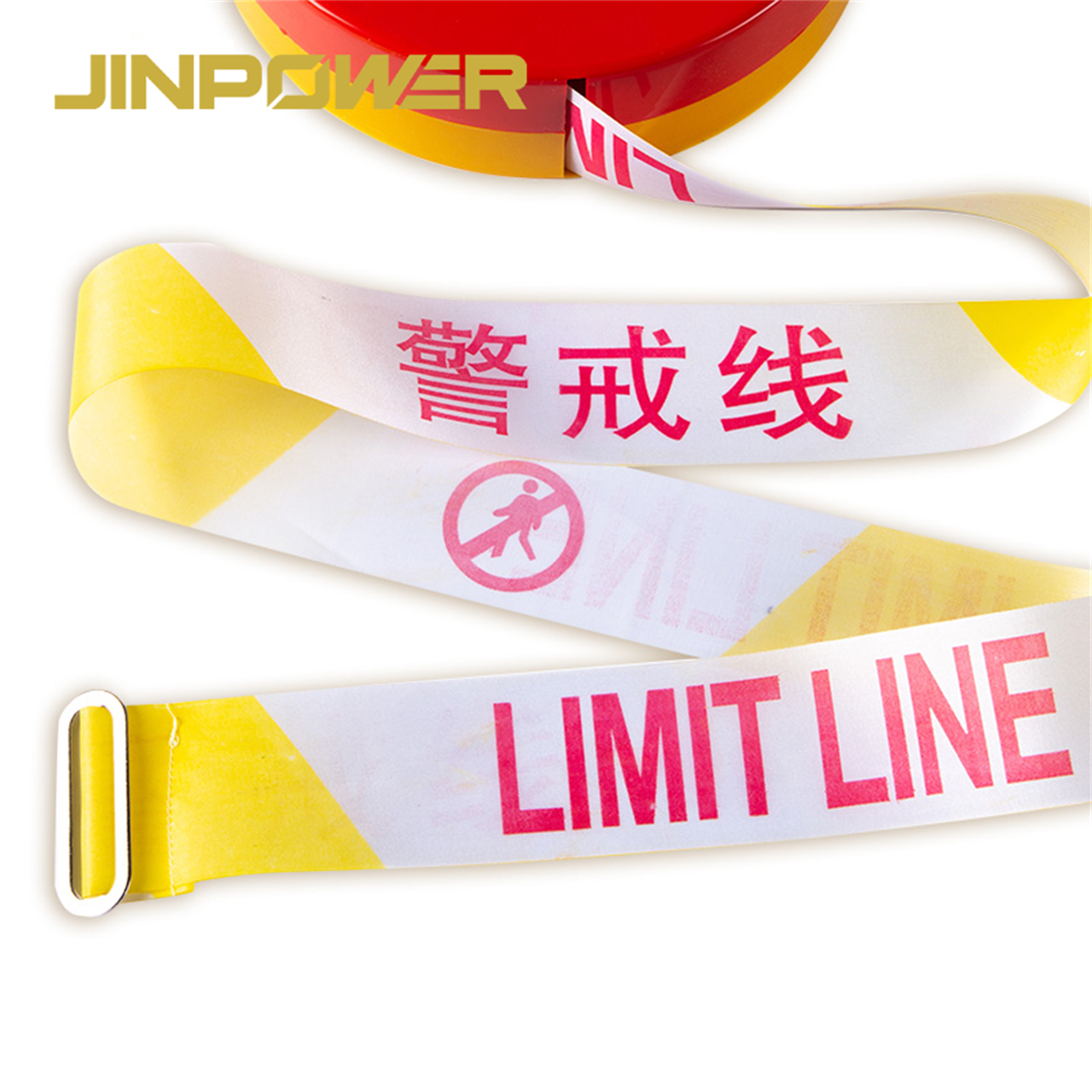

Tape End Ring

The current product configuration includes a metal ring at the tape end, which makes it easier to connect the tape to an appropriate support point at the worksite.

How Much Tape Length Do You Need?

The available product range covers approximately 48–150m, but longer is not always better.

A shorter reel may be easier to carry and manage if you mainly work around a single transformer bay, switchgear area or small maintenance zone.

Longer configurations make more sense for:

• Substation yards
• Long cable work areas
• Construction zones
• Large industrial maintenance areas
• Warehouse sections
• Utility field work

For purchasing, it is better to tell us the approximate perimeter or route you normally need to mark. That makes length selection much easier.

A 150m Reel Does Not Mean a 150m Unsupported Span

This is an important point when planning a long temporary barrier.

A long reel gives you plenty of tape to cover a large route, but the tape will normally need intermediate support points along the way.

Depending on the site, those support points may include suitable posts, columns, fence sections or other approved structures.

Using intermediate support helps control:

• Tape sag
• Wind movement
• Corner loading
• Accidental dragging
• Long unsupported sections

The reel length should therefore be understood as the total available tape, not the recommended unsupported distance between two points.

Protect the Tape Around Corners and Sharp Edges

Long barriers often pass around steel structures, concrete corners, fences or temporary supports.

Repeated rubbing against a sharp edge can damage the Polyester tape and lead to:

• Fraying
• Edge wear
• Cuts
• Damaged warning graphics
• Reduced service life

When planning the barrier route, avoid dragging the tape across sharp or abrasive surfaces wherever possible.

Boxed Warning Tape vs Magnetic Retractable Barrier

Both products create temporary visual boundaries, but they are designed for very different worksite layouts.

If you mainly need a short reusable barrier around switchgear, cabinets or doorways with a suitable steel surface, see ourMagnetic Retractable Safety Barrier.

Boxed Warning Tape vs Loose Warning Tape

Loose tape still makes sense when the job is simple and short-term. A boxed reel becomes more useful when your team repeatedly sets up long temporary boundaries and wants easier storage afterward.

Main Applications

Substation and Switchyard Work Zones

Large substations often need temporary visual boundaries during inspection, switching, transformer maintenance, testing or repair work.

A long warning tape reel makes it easier to mark a larger section of the yard without carrying many short barrier belts.

The tape only provides visual demarcation. It does not replace electrical isolation, voltage verification, grounding or PPE.

Electrical Construction

During new electrical installation, commissioning or renovation, the reel can be used to identify temporary work areas and keep normal pedestrian movement away from unfinished work.

Cable Installation and Maintenance

Cable pulling, cable jointing, cable testing and trench-related work can cover a much longer area than a single cabinet or machine.

This is where the 48–150m product range is particularly useful compared with a short magnetic barrier.

Utility Field Maintenance

Utility teams can carry the reel between different work locations and use it to mark temporary restricted zones during inspection, service and repair work.

Industrial Maintenance

Factories, mines, power plants and large industrial facilities often need temporary boundaries around equipment shutdowns, machine repair or maintenance activities.

Warehouse and Logistics Areas

The tape can also help mark temporary warehouse maintenance areas, rack repair zones or restricted sections of an aisle.

It should not be used as a barrier intended to physically stop a forklift or vehicle.

Pedestrian and Temporary Traffic Guidance

For temporary site management, the tape can help show people where they should not enter or which route they should follow.

This is visual guidance only. It is not a crash barrier, road barricade or vehicle restraint system.

Indoor and Outdoor Use

The ABS housing and Polyester tape make the product practical for normal indoor use and temporary outdoor work, but outdoor conditions still matter.

Before using the reel outdoors, consider:

• Wind
• Rain and moisture
• Tape span
• Intermediate support points
• Sharp edges
• Mud and contamination
• Long-term weather exposure

The product is designed for temporary area marking. It should not automatically be treated as a permanent all-weather perimeter system.

What This Warning Tape Cannot Do

A visible warning line is useful, but it is still a visual barrier rather than a structural safety barrier.

What Should You Check Before Use?

Check the Tape

• Cuts
• Tears
• Fraying
• Severe edge wear
• Heavy contamination
• Warning graphics that are no longer easy to read

Check the Reel

Make sure the reel rotates normally and that the tape can be pulled out without obvious jamming.

Check the Manual Crank

The crank should operate smoothly and rewind the tape without abnormal resistance.

Check the Housing

Look for serious cracks, impact damage or deformation that could interfere with the reel.

Check the Carry Handle

Make sure the handle is secure before carrying a long reel around the worksite.

Check the Tape End

Inspect the end ring and its connection to the tape for obvious damage or deformation.

Cleaning, Rewinding and Storage

A little care makes a big difference when you want to reuse long warning tape.

• Remove heavy mud, oil or dirt before winding the tape back into the housing.
• Allow wet tape to dry before long-term storage.
• Avoid pulling the tape across sharp metal or concrete edges.
• Wind the tape back in an orderly way rather than forcing a jammed reel.
• Protect the ABS housing from heavy impact.
• Do not use the tape as a lifting, tying or load-bearing strap.
• Store the reel in a clean area when it is not in use.

When Should the Warning Tape Reel Be Removed from Service?

If the reel can no longer create a clear and manageable temporary warning boundary, it should be inspected before being used again.

Typical reasons include:

• Severely torn tape
• Heavy fraying
• Warning markings that can no longer be read
• Reel mechanism that repeatedly jams
• Crank failure
• Broken carry handle
• Cracked or badly deformed ABS housing
• Damaged tape-end connection
• Reflective surface that is badly worn where visibility is required

Buyer Acceptance Checklist

JINPOWER Pre-Shipment Checks

For utility, EPC, industrial and distributor orders, we focus on confirming that the supplied reel matches the approved product configuration before shipment.

• Tape material
• Tape width
• Tape length
• Reel movement
• Manual rewind function
• ABS housing condition
• Carry handle
• Tape-end connection
• Warning appearance
• Quantity
• Packaging

Project Configuration and OEM Options

For distributors, contractors and project buyers, product details such as warning message, color, project labeling and packaging can be discussed based on the confirmed Boxed Warning Tape configuration.

If you have a specific project specification, send it together with your RFQ so we can check the requested configuration before production.

How Does This Product Fit Into JINPOWER's Safety Warning Range?

See the fullSafety Warning Taperange for different site-control applications.

If you need a short reusable barrier around steel equipment, see ourMagnetic Retractable Safety Barrier.

For underground cable and utility projects, seeUnderground Warning Tape.

Why Buy Boxed Warning Tape Reels from JINPOWER?

Built Around Real Electrical Worksites

JINPOWER focuses on electrical safety equipment, so we position this product around real utility, substation, construction and industrial maintenance needs rather than treating it as a general decorative barrier tape.

Different Width and Visibility Options

Buyers can choose between 4cm and 5cm tape, as well as standard and reflective Polyester configurations, depending on the worksite.

Long-Length Options

The approximately 48–150m range is useful for buyers who need much more coverage than a short retractable belt can provide.

Better RFQ Matching

Instead of simply quoting “warning tape,” we recommend confirming material, width, length, visibility requirement, application and quantity before production. This helps reduce specification mistakes on larger orders.

What Should You Include in Your RFQ?

Frequently Asked Questions

What is a Boxed Warning Tape Reel used for?

It is used to create temporary visual boundaries around maintenance, construction, electrical and industrial work areas. The long tape stays stored inside a portable reel when it is not in use.

What tape widths are available?

The current product range includes 4cm and 5cm configurations.

What tape materials are available?

The product is available in Polyester, with Reflective Polyester also available in the 5cm configuration.

How long is the warning tape?

Available configurations cover approximately 48–150m. The exact length should be confirmed when ordering.

Does the tape rewind automatically?

The current product uses a manual rewind reel with a crank. It should not be confused with our shorter spring-loaded Magnetic Retractable Safety Barrier.

Can I use one 150m tape between only two support points?

That is not the intended way to understand the reel length. Long work-zone boundaries normally need suitable intermediate support points to control sag, wind movement and tape tension.

Is Reflective Polyester better than standard Polyester?

It depends on the job. Standard Polyester is suitable for normal visible work areas, while Reflective Polyester is useful when you want the tape to stand out more under changing or low-light conditions.

Can it be used in substations?

Yes, it is well suited to temporary visual demarcation in substations and switchyards. It does not provide electrical insulation and does not replace voltage verification, grounding, isolation or PPE.

Can the tape stop people or vehicles physically?

No. It is a visual warning barrier. It is not a guardrail, vehicle restraint system or crash barrier.

Can it be used outdoors?

It can be used for appropriate temporary outdoor work, but wind, moisture, support points and long-term weather exposure should still be considered.

Can the warning message or project marking be customized?

Project-specific warning text, color, labeling or packaging can be discussed based on the confirmed product configuration and order requirements.

Request Boxed Warning Tape Reel Details and Pricing

If you are buying Boxed Warning Tape for a substation, utility project, cable installation, construction site, industrial facility or distribution business, send us more than just “I need warning tape.”

Tell us the tape width you prefer, whether you need standard or reflective Polyester, the approximate length, your worksite application and the quantity you need.

If you are not sure which configuration fits your job, send us the approximate work-zone size and application. JINPOWER can help you narrow down the right Boxed Warning Tape Reel configuration before quotation.
