Electrical Insulating Stools & FRP Work Platforms

Product Highlights

• Non-conductive elevated work platform for electrical maintenance
• Fiberglass / reinforced insulating construction according to model
• Multi-Layer, High-Low / Tiered and Folding configurations
• Anti-slip working surface according to configuration
• Suitable for substations, switchgear rooms, transformer areas and control panels
• Different height and platform-size options
• Fixed structures for regular workstations and folding options for mobile crews
• Project dimensions, color, labels, logo and packaging can be discussed according to the confirmed configuration

Quick Technical Specification

Available Model Reference

The following models are useful for initial selection. Because “stool height” can refer to different dimensions on different structures, the values below are shown as Nominal Height Reference. Final Platform Height, Overall Height and other dimensions should be confirmed on the approved drawing before ordering.

Load capacity, electrical test values, exact overall dimensions and other technical parameters should be verified against the Technical Datasheet and approved project documents for the selected model. They should not be estimated simply from the stool height.

Quick Selection Guide

Platform Height, Overall Height and Working Height Are Not the Same

This is one of the most important points to confirm before ordering an insulating stool.

Platform Height

Platform Height is the height of the actual surface where the operator stands. For most projects, this is one of the most useful dimensions when selecting a stool.

Overall Height

Overall Height is the total physical height of the product. On multi-level or framed designs, this may be different from the standing-platform height.

Working Height

Working Height describes the height an operator can comfortably reach after standing on the platform. It also depends on the worker's height, arm reach, working posture and the position of the electrical equipment.

So instead of writing only “We need a 1.2 m stool” in your RFQ, tell us the equipment operating-point height and the required standing-platform height. This makes model selection much more accurate.

What Is an Electrical Insulating Stool?

An Electrical Insulating Stool is a non-conductive work platform used when electrical personnel need a stable elevated standing position for operation, inspection, testing or maintenance.

It performs two basic jobs.

First, it provides additional working height when switchgear, control panels, relay cabinets, meters or operating mechanisms are above normal standing level.

Second, its insulating structure provides an additional non-conductive surface beneath the operator's feet as part of the wider electrical safety system.

For that reason, it is better understood as:

A Non-Conductive Elevated Work Platform for Electrical Work.

Why Use a Dedicated Insulating Stool?

An ordinary metal stool, wooden platform or general-purpose plastic step stool may provide height, but that does not automatically make it suitable for electrical maintenance.

A professional electrical work platform needs to be considered from both the electrical and mechanical sides:

• Insulating material
• Platform stability
• Anti-slip surface
• Mechanical load
• Standing height
• Environmental condition
• Inspection status
• Project test requirements

The real procurement question is not simply “Is it made from fiberglass?” It is whether the complete stool configuration is suitable for the intended electrical work environment.

An Insulating Stool Is Not a Complete Electrical Protection System

An insulating stool can provide a non-conductive standing surface, but it does not make the rest of the electrical safety procedure unnecessary.

Depending on the job, the complete safety system may also require:

• Electrical isolation
• Voltage verification
• Temporary grounding
• Electrical insulating gloves
• Insulating boots
• Electrical insulating rubber mats
• Arc-flash / electrical PPE
• Work authorization
• Minimum approach-distance controls

The stool should therefore be treated as an additional protection and access layer within the electrical safety system, not as a stand-alone way to prevent electric shock.

Electrical Insulating Stool vs Ordinary Step Stool

A stool should not automatically be approved for electrical work simply because it is made from plastic, wood or another non-metallic material.

Multi-Layer, Tiered or Folding: Which Structure Fits the Job?

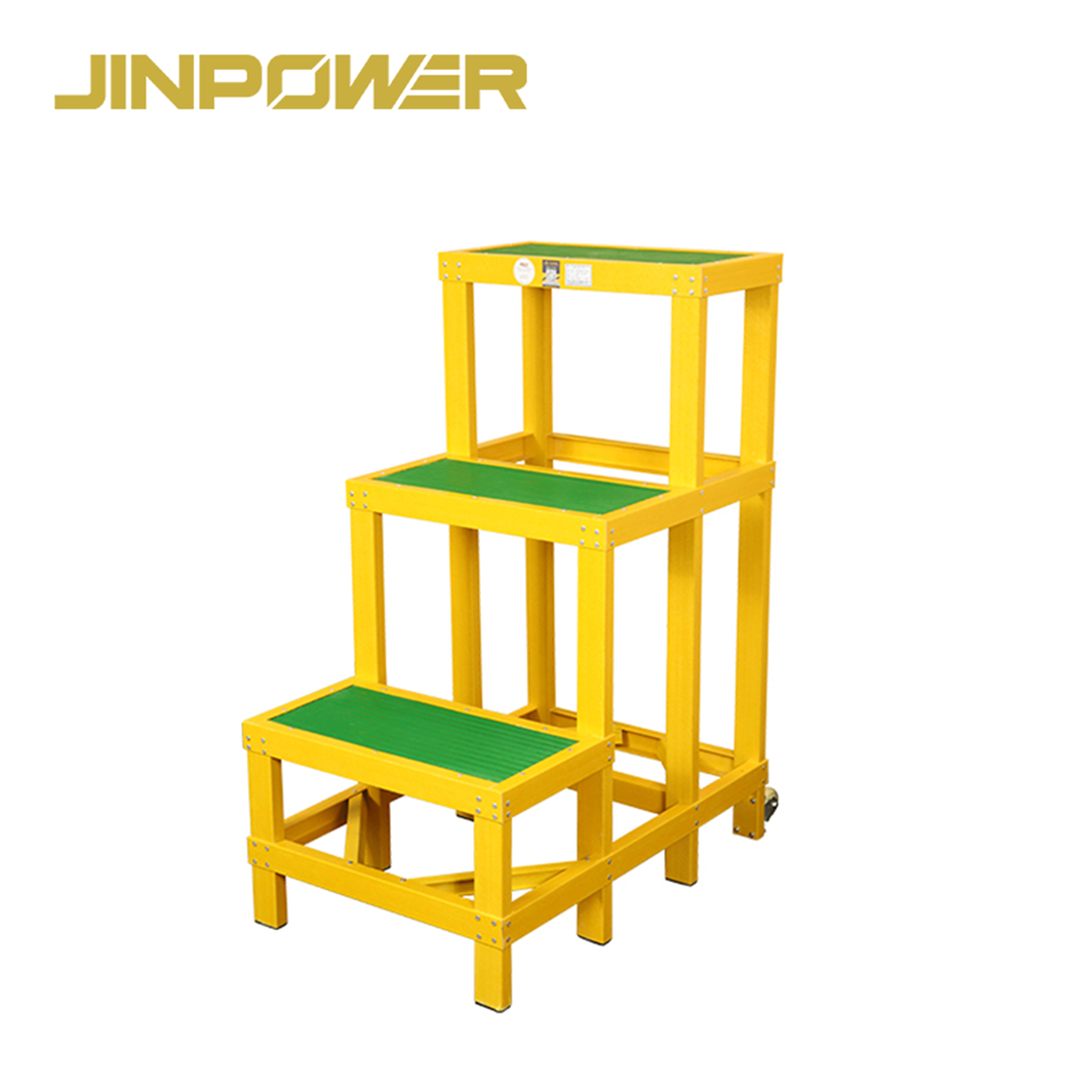

Multi-Layer Insulating Stool

The Multi-Layer design uses several step levels with a fixed reinforced structure.

It is useful in substations, control rooms and other fixed work areas where personnel regularly need more than one standing level.

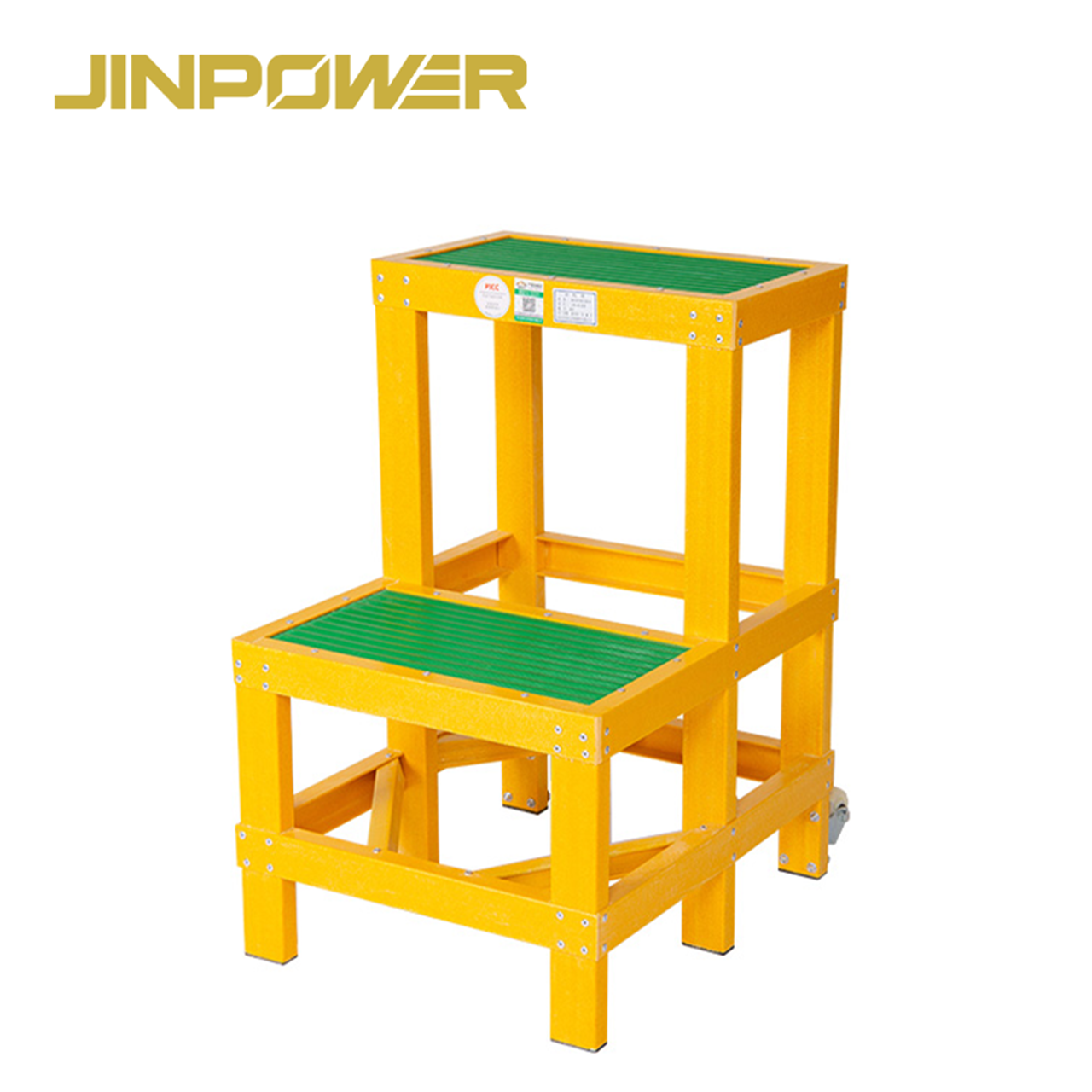

High-Low / Tiered Insulating Stool

The High-Low / Tiered design provides different elevated positions within one structure.

This can be practical where breakers, relays, meters or transformer auxiliary equipment are installed at different heights.

Folding Insulating Stool

The folding version is designed around easier transport and compact storage.

It is particularly useful for mobile maintenance crews and service vehicles, but the folding design adds hinges and locking components that should be checked before every deployment.

Fixed vs Folding Insulating Stool

Insulating Stool vs Insulating Ladder

Both products help electrical workers reach equipment above normal standing height, but they solve different access problems.

If the work requires regular climbing to a higher position, use anElectrical Insulating Ladderrather than stacking stools or placing temporary supports under the platform.

Insulating Stool vs Electrical Insulating Mat

The stool mainly solves a working-height problem, while the rubber mat mainly covers the floor-level working area.

Depending on the risk assessment and site procedure, the two products may be used as different layers within the same electrical safety setup.

For floor-level insulation, see ourElectrical Insulating Rubber Matrange.

How to Choose the Right Electrical Insulating Stool

1. Start With the Required Platform Height

First check how much extra standing height the operator actually needs to reach the target equipment comfortably.

Do not select the stool only from Overall Height.

2. Check the Platform Size

The standing area should be suitable for the actual work posture.

Ask whether the operator needs to reposition their feet, turn slightly or carry a voltage detector, tool bag or other testing equipment while working.

3. Choose Fixed or Folding

Fixed substations and electrical rooms may prioritize rigidity and fast daily use. Mobile crews may care more about folding size, transportation and vehicle storage.

4. Confirm the Rated Mechanical Load

Do not calculate the required load only from the worker's body weight.

The total working load may include:

• Worker
• Tool bag
• Test equipment
• Portable electrical tools
• Other carried equipment

Ask for the Rated Load or Mechanical Test Result of the actual model instead of assuming all stools have the same capacity.

5. Check the Working Environment

Indoor switchgear rooms, outdoor substations and field-maintenance locations can have very different floor and environmental conditions.

Consider:

• Floor condition
• Humidity
• Water or mud
• Oil or chemical contamination
• UV exposure
• Uneven surfaces

The use of insulating material does not mean the stool should automatically be used in standing water, on heavily contaminated surfaces or on unstable ground.

6. Confirm Electrical Test Requirements

If the utility, EPC contractor or tender requires dielectric testing, insulation-resistance testing or another electrical test, provide the required test method, voltage, duration and acceptance criteria during the RFQ stage.

7. Confirm the Required Documentation

For project procurement, check which documents need to be approved before shipment.

• Technical Datasheet
• Approved Drawing
• Mechanical Test Report
• Electrical Test Report where required
• Product Marking
• Batch / Serial Identification
• COC or other project documents

Why Anti-Slip Performance and Stability Matter

Electrical insulation is only one part of stool safety.

A worker can still fall if the platform is slippery, the frame moves or the feet do not make stable contact with the floor.

During purchasing and inspection, check:

• Anti-slip surface
• Platform rigidity
• Frame stability
• Feet / support condition
• Uneven floor contact
• Folding lock where applicable

For folding models especially, good insulating material does not automatically mean the complete stool is mechanically stable.

Main Applications

Switchgear and Control Panels

Breakers, relays, meters and operating mechanisms are not always positioned at a comfortable standing height.

An insulating stool provides an elevated work platform while adding a non-conductive surface beneath the operator's feet.

Substation Operations

During inspection, switching support, testing and commissioning, personnel may need temporary additional standing height around electrical equipment.

Select the stool according to equipment height, platform requirement, floor condition and the site's electrical safety procedure.

Transformer Areas

Transformer areas can include elevated instruments, terminals and auxiliary control equipment.

Use an approved platform of the correct height rather than increasing height with blocks, additional stools or other improvised supports.

Testing and Commissioning

Testing work often requires a stable body position while the operator handles a voltage detector, test leads or other electrical instruments.

For related equipment, see JINPOWERVoltage Detectors.

Industrial Electrical Maintenance

Factories, mines, utility rooms and industrial electrical facilities may also require a non-conductive elevated platform for inspection and maintenance.

Mobile Utility Maintenance

For maintenance crews that move between work sites, a folding insulating stool can reduce storage space inside service vehicles.

Before use, make sure the folding frame and locking mechanism are fully engaged and stable.

How Should Standards Be Reviewed?

Mechanical stool requirements and electrical insulation requirements should be reviewed separately. A standard should not be applied simply because the product contains fiberglass or is marketed as “insulating.”

EN 14183

EN 14183 is a step-stool standard covering areas such as design, dimensions, materials, performance and testing.

Where the product structure falls within the relevant step-stool scope, EN 14183 may be used as a reference for mechanical and structural requirements.

EN 14183 should not be described as an electrical insulation certification.

IEC 61478

IEC 61478 covers specific insulating ladder designs used for live working. It does not automatically apply to every insulating stool or work platform.

For an insulating stool, the applicable electrical requirements should therefore be confirmed from the exact product design, project specification and supporting test documentation rather than simply claiming IEC 61478 compliance.

Project-Specific Electrical Tests

Utilities and EPC projects may define their own requirements for dielectric withstand, insulation resistance, mechanical load, stability and other acceptance criteria.

The best approach is to provide the required test method and acceptance criteria during quotation instead of asking only, “Does this stool have an IEC certificate?”

Electrical and Mechanical Acceptance Should Be Checked Separately

What Should Be Checked Before Use?

Inspect the Fiberglass / Insulating Structure

• Cracks
• Delamination
• Deep scratches
• Impact damage
• Deformation
• Contamination
• Moisture

Inspect the Platform

Check for cracks, loose connections or deformation, and make sure the anti-slip surface is not covered with oil, mud or other contamination.

Check the Feet and Ground Contact

All support points should be complete, and the stool should sit securely on a firm, stable surface without abnormal rocking.

Check the Folding Mechanism

For folding models, make sure hinges, locks and anti-opening mechanisms are correctly engaged before the worker steps onto the platform.

Check the Label and Test Status

Confirm that model identification, required load information and project inspection / test status remain clear and traceable.

Outdoor, Humid and Contaminated Conditions

Fiberglass can be useful in electrical environments, but that does not mean an insulating stool automatically remains suitable under every wet or contaminated condition.

Before using the stool outdoors or in a high-humidity location, check:

• Whether the platform is clean and dry
• Whether a water film is present
• Whether mud, oil or chemical contamination is present
• Whether all feet make stable contact with the ground
• Whether the frame has been damaged
• Whether the environment is suitable for the selected product configuration

Standing water, serious contamination or unstable ground can affect both electrical condition and mechanical stability. Follow the site's safety procedure whenever these conditions are present.

Cleaning, Storage and Maintenance

• Keep insulating surfaces clean and dry
• Avoid cleaning agents or solvents that may damage the material
• Avoid prolonged contact with oil and chemicals
• Protect the frame from impact
• Do not place heavy objects on the stool during storage
• Protect folding hinges and locking mechanisms
• Avoid unnecessary prolonged UV exposure
• Maintain inspection and test records where required by the project

When Should the Insulating Stool Be Removed from Service?

If there is any doubt about the electrical integrity or mechanical stability of the stool, stop using it and arrange inspection.

Typical reasons include:

• Visible cracks in the fiberglass
• Delamination or serious surface damage
• Platform deformation or loose connection
• Visible frame deformation
• Abnormal rocking or wobbling
• Missing or badly damaged foot pads / supports
• Folding lock does not engage reliably
• Severe mechanical impact
• Unknown contamination or moisture exposure
• Required inspection or test period has expired
• Failure of a required electrical or mechanical test

JINPOWER Pre-Shipment Checks

For utility, EPC, contractor and distributor orders, the main goal before shipment is to confirm that the supplied stool matches the Approved Specification.

• Product model
• Confirmed height dimensions
• Platform size
• Structure type
• Frame condition
• Platform condition
• Anti-slip surface
• Feet / support structure
• Folding mechanism where applicable
• Product label and identification
• Packaging
• Required technical documentation

If the project requires a specific mechanical load test, dielectric test, third-party inspection or batch traceability, define those requirements before production and order confirmation.

OEM and Project Configuration

JINPOWER supports utility companies, EPC contractors, electrical distributors, industrial buyers and maintenance contractors requiring project or bulk quantities.

Depending on the confirmed product structure, we can discuss:

• Height
• Platform size
• Multi-Level configuration
• Fixed / Folding structure
• Color
• Safety label
• Serial identification
• Logo / branding
• Packaging
• Project documentation

How Does an Insulating Stool Fit Into an Electrical Safety System?

The insulating stool provides an elevated working position and additional underfoot insulation. Other equipment may still be required depending on the job.

Related JINPOWER products includeInsulated Ladders & Stools,Electrical Insulating Ladders,Electrical Insulating Rubber Mats,Electrical Safety PPEandVoltage Detectors.

Why Choose JINPOWER Insulating Stools?

Designed Around Electrical Work

JINPOWER supplies insulating ladders, rubber mats, voltage detectors, grounding equipment and electrical PPE, so the stool can be selected as part of the wider electrical worksite rather than treated as ordinary furniture.

Multiple Structure Options

Multi-Layer, High-Low / Tiered and Folding designs give buyers options for fixed substations, changing work heights and mobile maintenance.

Application-Based Selection

We recommend selecting around platform height, platform size, load, stability, working environment and electrical requirements instead of choosing only by overall height.

B2B Project Documentation

For utility tenders, EPC projects and distributor procurement, datasheets, drawings, test requirements, labels, packaging and other approval documents can be confirmed before order approval.

What Should You Include in Your RFQ?

Frequently Asked Questions

What is an Electrical Insulating Stool mainly used for?

It provides a stable elevated standing position and an additional non-conductive surface for electrical work in locations such as substations, switchgear rooms, transformer areas and industrial electrical facilities.

Is the listed stool height the same as Platform Height?

Not automatically. Depending on the structure, a quoted height may refer to a nominal or overall dimension rather than the exact standing-platform height. Confirm Platform Height and Overall Height on the final drawing before ordering.

Can an insulating stool replace insulating boots or a rubber mat?

No. Stools, boots and insulating mats serve different roles within an electrical safety system. The correct combination depends on the hazard assessment and work procedure.

What is the difference between an insulating stool and an insulating ladder?

A stool provides a stable standing platform at lower working heights. A ladder is used for climbing and reaching higher locations. Do not stack stools to replace a ladder.

Should I choose a fixed or folding stool?

Fixed designs are practical for permanent substations and switchgear rooms. Folding designs are more convenient for crews that need frequent transport and vehicle storage.

How should I choose the stool height?

Start with the height of the equipment operating point and the standing position required by the worker. Do not select only from Overall Height.

How should Load Capacity be selected?

Consider the combined load of the worker, tools and test equipment, then verify the Rated Load or mechanical test data of the exact stool model.

Can the stool be used outdoors or in damp conditions?

Suitability should be confirmed for the selected model and project. Check moisture, surface contamination, ground stability and product condition before use. Fiberglass construction alone does not mean the stool is suitable for every wet environment.

Is EN 14183 an electrical insulation standard?

No. EN 14183 addresses step-stool design, dimensions, materials, performance and testing. Electrical insulation requirements need to be verified separately where they apply.

Does IEC 61478 apply to insulating stools?

Not automatically. IEC 61478 covers specified insulating ladders used for live working. The applicable electrical requirements for a stool should be determined from the actual product design, project specification and supporting test documentation.

Can JINPOWER customize the stool?

Height, platform size, structure, color, labeling, branding and packaging can be discussed according to the selected design and order requirements.

Request Insulating Stool Details and Pricing

If you are sourcing Electrical Insulating Stools for a substation, switchgear room, transformer facility, industrial electrical maintenance team or EPC project, send JINPOWER more than just “Need a fiberglass stool.”

Please provide the required Platform Height, equipment operating height, platform size, structure type, total load requirement, indoor or outdoor environment, electrical test requirements, applicable standards, quantity and required documentation.

JINPOWER can then confirm a suitable Multi-Layer, High-Low / Tiered or Folding configuration before quotation and project approval.
