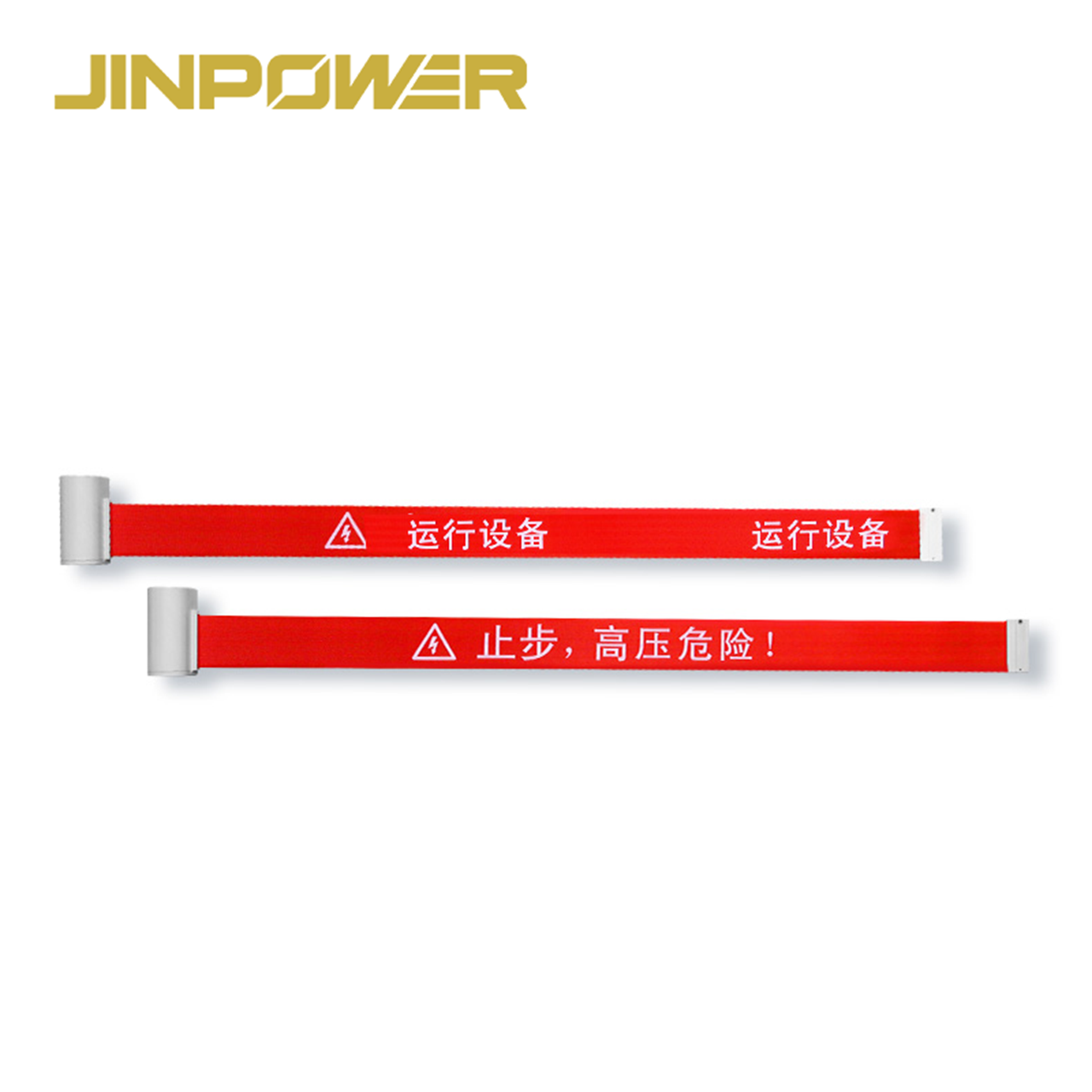

Magnetic Retractable Safety Barrier for Temporary Work Zones

Product Highlights

• 5m reusable retractable safety belt
• 6cm wide thickened nylon webbing
• Magnetic back mount for compatible steel or iron surfaces
• No drilling required
• No separate floor stand required
• ABS housing protects the belt and retraction mechanism
• Reflective warning element for improved visual identification
• Quick-Connect Interface for compatible connection points or multiple-unit layouts
• Custom warning text, logo and project identification by silk-screen printing
• Suitable for substations, electrical maintenance, industrial facilities, warehouses and temporary work zones

Quick Technical Specification

Quick Selection Guide

What Is a Magnetic Retractable Safety Barrier?

A Magnetic Retractable Safety Barrier is a reusable visual access-control device that combines a magnetic mounting base with a retractable warning belt.

Instead of tying disposable warning tape around cabinets, poles or equipment, the housing can be attached directly to a suitable steel surface. The belt is pulled out when the work area needs to be restricted and retracts back into the housing after the job is complete.

This makes the product especially useful in facilities where maintenance, inspection and temporary access control happen regularly.

Its main functions are:

• Creating a temporary visual boundary
• Showing personnel that an area is restricted
• Marking maintenance, inspection and repair zones
• Temporarily guiding pedestrian access

It is primarily a visual and behavioral access-control product rather than a structural protective barrier.

Why Use Magnetic Mounting?

Tool-Free Installation

The magnetic back mount can attach directly to a suitable steel or iron surface without drilling holes, installing screws or adding a permanent mounting bracket.

This is useful around switchgear, electrical cabinets and machine frames where drilling into the equipment is not desirable.

Less Floor Space

A traditional retractable barrier often uses a post and floor base. A Magnetic Barrier uses an existing metal structure as the mounting point.

That can be useful in narrow switchgear aisles, electrical rooms, doorways and warehouse aisles where a floor stand may take up valuable walking space.

Easy to Reposition

When the maintenance location changes, the housing can be moved to another suitable magnetic surface.

Always check that the new mounting point provides stable magnetic holding before extending the belt.

How Does the Magnetic Retractable Barrier Work?

Magnetic Back Mount

The magnetic back mount holds the barrier housing against a compatible steel or iron surface.

Actual holding performance can be affected by:

• Metal type
• Surface coating
• Steel thickness
• Surface flatness
• Dust, oil or contamination
• Belt tension
• Side load

For project orders, a sample holding test on the actual installation surface is a practical way to confirm suitability.

5m Retractable Nylon Belt

The 5m nylon belt can be extended only as far as needed for the work area.

After use, the belt retracts into the ABS housing, which helps keep the system organized and ready for the next maintenance job.

Quick-Connect Interface

The belt end and housing include a Quick-Connect Interface for compatible connection points and multi-unit layouts.

If one 5m unit is not enough, several compatible barriers can be arranged in sections according to the mounting points and site layout.

This should not be understood as unlimited extension. The actual layout still depends on magnetic holding, belt tension and worksite conditions.

ABS Housing

The ABS housing protects the nylon belt, spring and retraction mechanism during normal transport, storage and repeated use.

Reflective Warning Element

The reflective warning element helps make the barrier easier to notice in low-light or changing-light conditions.

It improves visual identification, but it should not be described as meeting a specific traffic-reflectivity class unless the selected product has corresponding test data.

What Surfaces Work With a Magnetic Barrier?

The product only works properly when the mounting surface provides enough magnetic attraction to keep the housing stable.

Surfaces Typically Suitable for Evaluation

• Carbon Steel Cabinet
• Steel Switchgear Housing
• Steel Machine Frame
• Steel Rack
• Iron Structure
• Compatible Steel Door / Door Frame
• Steel Column

Surfaces That Should Be Tested First

• Painted Steel
• Powder-Coated Steel
• Thin Steel Panels
• Curved Metal Surfaces
• Certain Stainless Steel Grades

Stainless steel is especially important to check because different grades have different magnetic properties. “Stainless steel” does not automatically mean the magnet will hold well.

Generally Unsuitable for Magnetic Mounting

• Aluminum
• Plastic
• FRP
• Wood
• Glass
• Concrete

If the installation surface is uncertain, send us the material information or test a sample on the real equipment before placing a bulk order.

Why Use a 6cm Wide Warning Belt?

The 6cm belt gives more visible space for warning information than a narrow strap.

Common warning messages may include:

• DANGER
• CAUTION
• KEEP OUT
• DO NOT ENTER
• AUTHORIZED PERSONNEL ONLY
• ELECTRICAL WORK IN PROGRESS
• MAINTENANCE IN PROGRESS

The wider belt also gives more room for project identification, company logos and multilingual warning text.

The 6cm width is a product design specification. It should not automatically be described as a mandatory width under a specific safety standard.

Where Does a 5m Belt Work Best?

A 5m retractable belt is mainly suited to localized temporary access control rather than long-distance perimeter marking.

Typical areas include:

• Electrical Cabinet Work Area
• Switchgear Bay
• Doorway
• Short Corridor
• Equipment Inspection Zone
• Warehouse Aisle
• Localized Maintenance Area

If the required boundary is much longer than one unit can comfortably cover, use additional mounting points or multiple compatible barriers instead of over-tensioning one belt.

Magnetic Retractable Barrier vs Boxed Warning Tape

If your project needs a much longer portable warning boundary, see ourBoxed Warning Tape Reel.

Magnetic Barrier vs Floor-Post Retractable Barrier

The magnetic design works best where reliable steel mounting points are already available. For open areas with no suitable metal structure, a floor-post or another barrier system may be more practical.

Custom Warning Text, Logo and Multilingual Printing

JINPOWER supports silk-screen printing of warning messages, company logos and project identification on the belt.

Customization can include:

• Warning Text
• Company Logo
• Utility / Contractor Name
• Department Name
• Project ID
• Asset Identification
• Local-Language Warning
• Dual-Language / Multilingual Layout

Before production, confirm the belt background, text color, font size, logo size, warning-message length and printing position.

Main Applications

Substation and Switchgear Maintenance

Substations and switchgear rooms often need temporary access restrictions during inspection, testing, maintenance or equipment service.

Where suitable steel switchgear or cabinets are already available, the magnetic housing can create a temporary visual boundary without adding a separate floor post.

Electrical Equipment Maintenance

The barrier can be used around circuit breakers, electrical cabinets, transformer auxiliary equipment and control panels to visually define the maintenance area.

It can support Permit-to-Work, maintenance signage and site access-control procedures, but it does not replace electrical isolation.

Industrial Maintenance

Factories and workshops may use magnetic barriers around temporary shutdowns, machine inspections and repair zones when suitable steel structures are available.

Warehouse and Logistics Areas

The product can be used for temporary pedestrian-area marking during rack repair, aisle maintenance, loading-area inspection or equipment service.

It is not designed to physically stop forklifts, vehicles or other moving equipment.

Doorways and Corridors

Steel door frames, cabinets and other suitable mounting points make the magnetic barrier useful for temporary doorway and corridor access control.

How Should Magnetic Barriers Be Used With LOTO?

A Magnetic Barrier can visually mark a maintenance or Lockout / Tagout area, but it is not itself a LOTO device.

It cannot replace:

• Energy Isolation
• Lock
• Tag
• Energy Verification
• Permit-to-Work
• Authorized Personnel Control Procedures

Its role is to make an already established restricted or maintenance area easier for other personnel to recognize.

Indoor and Outdoor Use

The product works well for indoor temporary barriers and can also be considered for temporary outdoor use when site conditions are suitable.

For outdoor use, check:

• Wind
• Rain and Moisture
• Mounting Surface Condition
• Steel Surface Contamination
• Belt Span
• Side Load
• Temperature Exposure
• Personnel and Vehicle Activity

Without specific environmental test data, the product should not automatically be described as a permanent all-weather outdoor barrier.

Why Do Belt Tension and Wind Matter?

As the 5m belt is extended, it places lateral load on the magnetic housing and connection points.

Wind, accidental contact or excessive belt tension can increase that load.

Avoid:

• Over-tightening the belt
• Using a weak or undersized steel mounting surface
• Long unsupported spans in strong wind
• Allowing personnel to lean on the belt
• Hanging tools or other loads from the belt
• Allowing forklifts or vehicles to contact the barrier

For larger areas, use several suitable mounting points or multiple barrier units instead of treating one belt like a high-tension rope.

What This Magnetic Barrier Cannot Do

Even when the belt says “DANGER” or “KEEP OUT,” it still depends on personnel following the site's access-control rules. It does not physically prevent entry like a guardrail or locked barrier.

What Should Be Checked Before Use?

Check the Magnetic Base

• Make sure the magnet is not loose or visibly damaged
• Remove heavy dust, oil or contamination from the mounting surface
• Confirm that the housing sits properly against the surface
• Check that the magnetic hold is stable before extending the belt

Inspect the Nylon Belt

• Fraying
• Cuts
• Edge Wear
• Severe Contamination
• Unclear Warning Text

Check the Retraction Mechanism

Make sure the belt extends and retracts smoothly without serious jamming, abnormal movement or uncontrolled recoil.

Inspect the Quick Connector

Check for cracks, deformation or obvious wear and make sure the connector holds securely when connected.

Inspect the ABS Housing

Check for serious cracks, impact damage or deformation that may interfere with the internal retraction mechanism.

Inspect the Reflective Warning Element

If the reflective element is badly damaged, missing or heavily contaminated, review whether repair or replacement is needed based on the site's visibility requirement.

Cleaning, Storage and Maintenance

• Retract the belt smoothly after use
• Do not retract heavily contaminated tape into the housing
• Remove mud, oil or chemicals before storage
• Make sure the belt is dry before long-term storage
• Keep the magnetic mounting surface clean
• Protect the housing from heavy impact or dropping
• Do not hang tools or other loads from the belt
• Avoid leaving the belt under unnecessary tension for long periods
• Protect the Quick-Connect Interface from damage

When Should the Magnetic Barrier Be Removed from Service?

Stop using the barrier and inspect it if it can no longer create a stable and clearly visible temporary boundary.

Typical reasons include:

• The magnetic base cannot attach securely
• The magnet is loose or damaged
• The nylon belt is badly torn or frayed
• The warning message can no longer be read clearly
• The retraction mechanism repeatedly jams
• The belt cannot retract correctly
• The Quick Connector no longer connects reliably
• The ABS housing has serious cracks
• The product has suffered severe impact
• The barrier no longer meets the site's access-control requirement

Magnetic Barrier Buyer Acceptance Checklist

JINPOWER Pre-Shipment Checks

For utility, EPC, industrial and distributor orders, pre-shipment inspection focuses on making sure the actual barrier matches the Approved Order Requirements.

• 6 cm belt width
• 5 m retractable belt length
• Nylon webbing condition
• Magnetic base condition
• Retraction function
• Quick-Connect function
• ABS housing
• Reflective warning element
• Custom printed text and logo
• Quantity
• Packaging

For custom orders, warning artwork—including belt background, text, logo, language and printing position—should be approved before mass production.

Project and OEM Options

Depending on the confirmed order requirement, JINPOWER can discuss:

• Warning Text
• Company Logo
• Project Name
• Department Identification
• Single-Language / Multilingual Layout
• Silk-Screen Printing
• Project Label
• Packaging
• Bulk Quantity

How to Choose Between JINPOWER Safety Warning Products

See the fullSafety Warning Taperange for different work-area and utility-warning applications.

For longer temporary boundaries, see ourBoxed Warning Tape Reel.

For buried cable and utility projects, see ourUnderground Warning Tape.

Why Choose JINPOWER Magnetic Retractable Safety Barriers?

Designed for Electrical and Industrial Worksites

JINPOWER positions this product for substations, electrical maintenance, industrial facilities and other work areas where temporary access control is needed regularly.

Clear Product Specifications

The 6cm nylon belt, 5m retractable length, magnetic mounting, ABS housing and Quick-Connect Interface make it easier for buyers to evaluate the product against the actual site layout.

Reusable Work-Area Management

For facilities where maintenance and restricted access happen frequently, a retractable barrier can reduce the need to repeatedly install and dispose of temporary warning tape.

Custom Safety Communication

Custom text, logos and multilingual printing allow the belt to combine temporary area management with clear worksite safety communication.

What Should You Include in Your RFQ?

Frequently Asked Questions

Is Magnetic Warning Tape the same as regular warning tape?

No. The product on this page is a Magnetic Retractable Safety Barrier with a magnetic housing, 5m retractable nylon belt and Quick-Connect Interface. Regular warning tape is normally supplied as a long loose or rolled tape.

Can the Magnetic Barrier attach to any metal?

No. It is mainly designed for steel or iron surfaces with suitable magnetic properties. Aluminum and many non-magnetic materials will not work, and some stainless steel grades also provide little or no magnetic attraction.

What is the maximum belt length?

The current product configuration uses a 5m retractable belt. The practical working span should still be selected according to the mounting surface, belt tension and site conditions.

Can several Magnetic Barriers be connected together?

Yes. The Quick-Connect Interface allows compatible units to be arranged together for larger temporary boundaries. The actual layout should still consider magnetic mounting points, belt tension and worksite conditions.

Can it be used in a substation?

Yes, for suitable maintenance, inspection and temporary restricted areas. It is visual access-control equipment and does not provide electrical insulation or replace isolation, grounding or electrical PPE.

Can it be used as a LOTO barrier?

It can visually mark a LOTO or maintenance area, but it is not itself a Lockout / Tagout device and cannot replace locking, tagging or energy-isolation procedures.

Can it stop forklifts or vehicles?

No. It is designed for visual warning and pedestrian access guidance, not as a vehicle-impact or crash barrier.

Can it be used outdoors?

It can be considered for suitable temporary outdoor use, but wind, rain, magnetic surface condition, belt span and environmental exposure should be checked. It should not automatically be treated as a permanent all-weather barrier.

Can the warning text and logo be customized?

Yes. JINPOWER supports silk-screened warning text, logos and project identification, including single-language and multilingual layouts.

Why not just use disposable caution tape?

Disposable warning tape can be a good choice for one-time or very large temporary cordons. A Magnetic Retractable Barrier is more useful where the same work areas need to be opened, closed and marked repeatedly.

Request Magnetic Retractable Safety Barrier Details and Pricing

If you are sourcing Magnetic Retractable Safety Barriers for substations, electrical maintenance, industrial facilities, warehouses, EPC projects or safety equipment distribution, send JINPOWER the actual worksite information rather than only asking for a “Magnetic Warning Tape Price.”

Please provide the mounting surface, required barrier span, quantity, indoor or outdoor environment, warning text, language, logo requirement, artwork and packaging requirements.

If you are not sure whether the site's steel surface provides enough magnetic holding, send the surface material information and photos or test a sample first. JINPOWER can then confirm whether the Magnetic Retractable Safety Barrier is suitable for the application.
