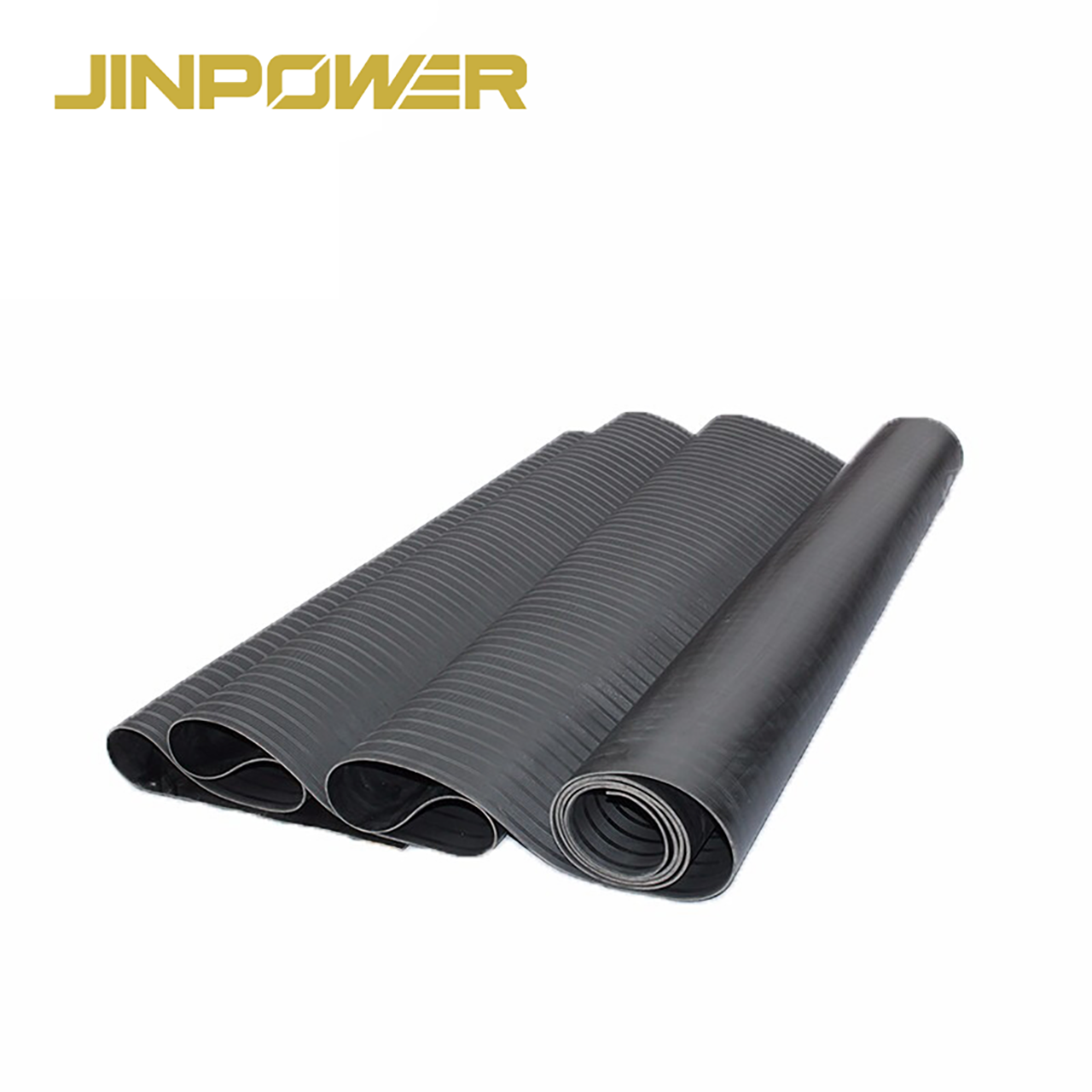

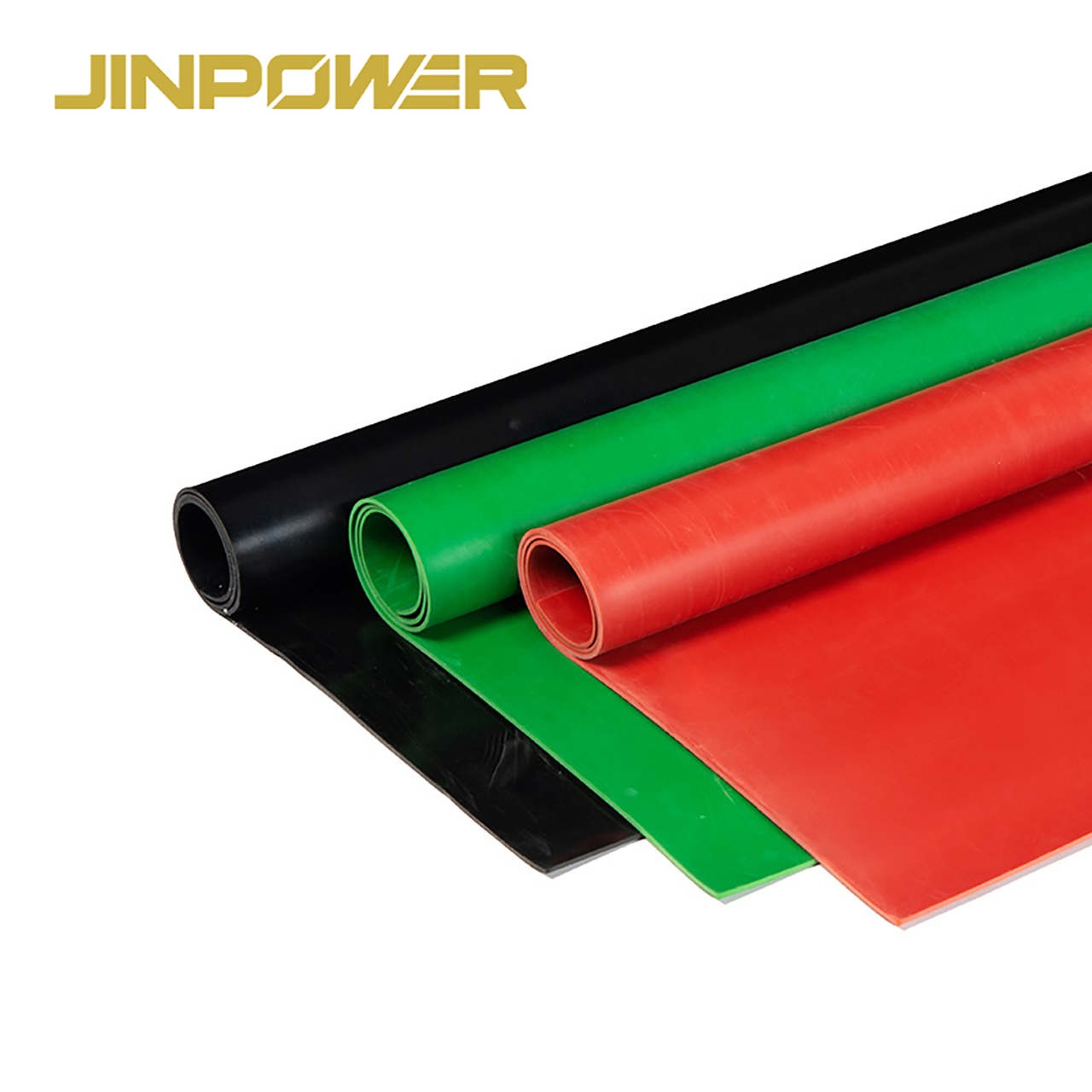

Electrical Insulating Rubber Mat for Switchboards

Product Highlights:

• IEC Class 0-4 electrical insulation options
• Thickness from 3mm to 12mm
• Multiple surface designs available
• Customized width and length support
• Factory supply for distributors and projects

Electrical Insulating Rubber Mat for Switchboard Applications

Switchboard mats are installed in front of electrical panels, switchgear and distribution equipment to create a safer working area for electrical personnel.

JINPOWER electrical insulating mats are manufactured using rubber materials and designed for electrical workplaces requiring insulation protection. They are suitable for substations, switchgear rooms, industrial facilities and electrical maintenance areas.

Electrical Insulation Class and Voltage Rating

JINPOWER switchboard mats are available with IEC Class 0, Class 1, Class 2, Class 3 and Class 4 insulation classifications. Each class provides different thickness, working voltage, test voltage and withstand voltage performance.

Technical data is based on JINPOWER Electrical Insulating Mat technical specifications.

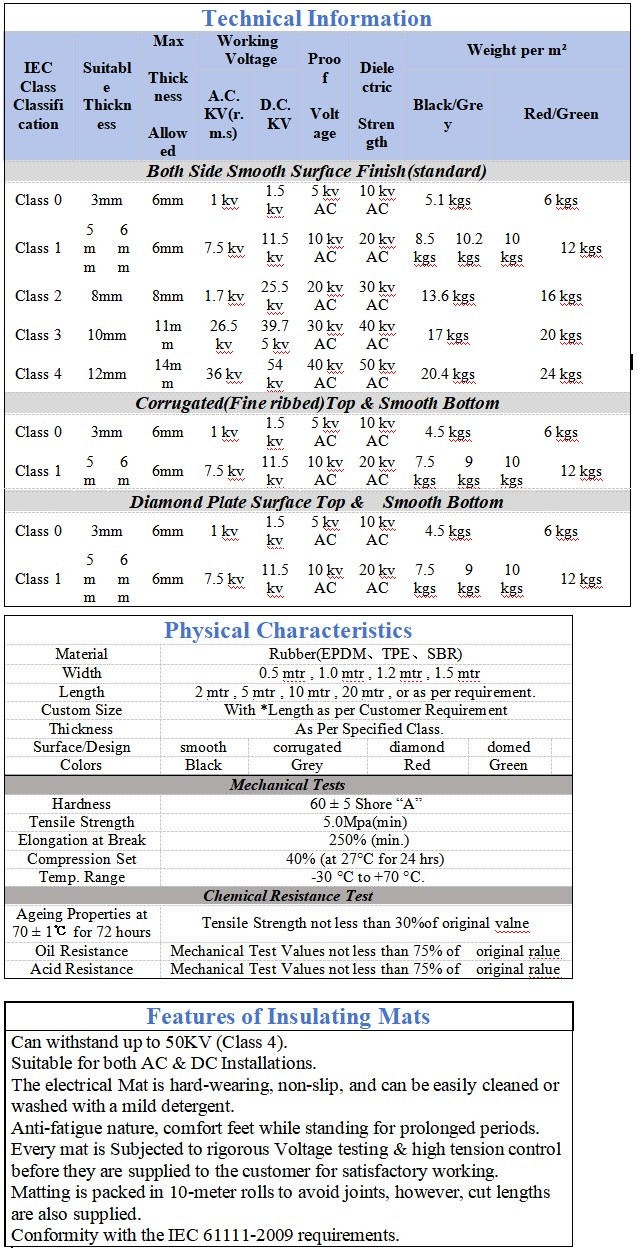

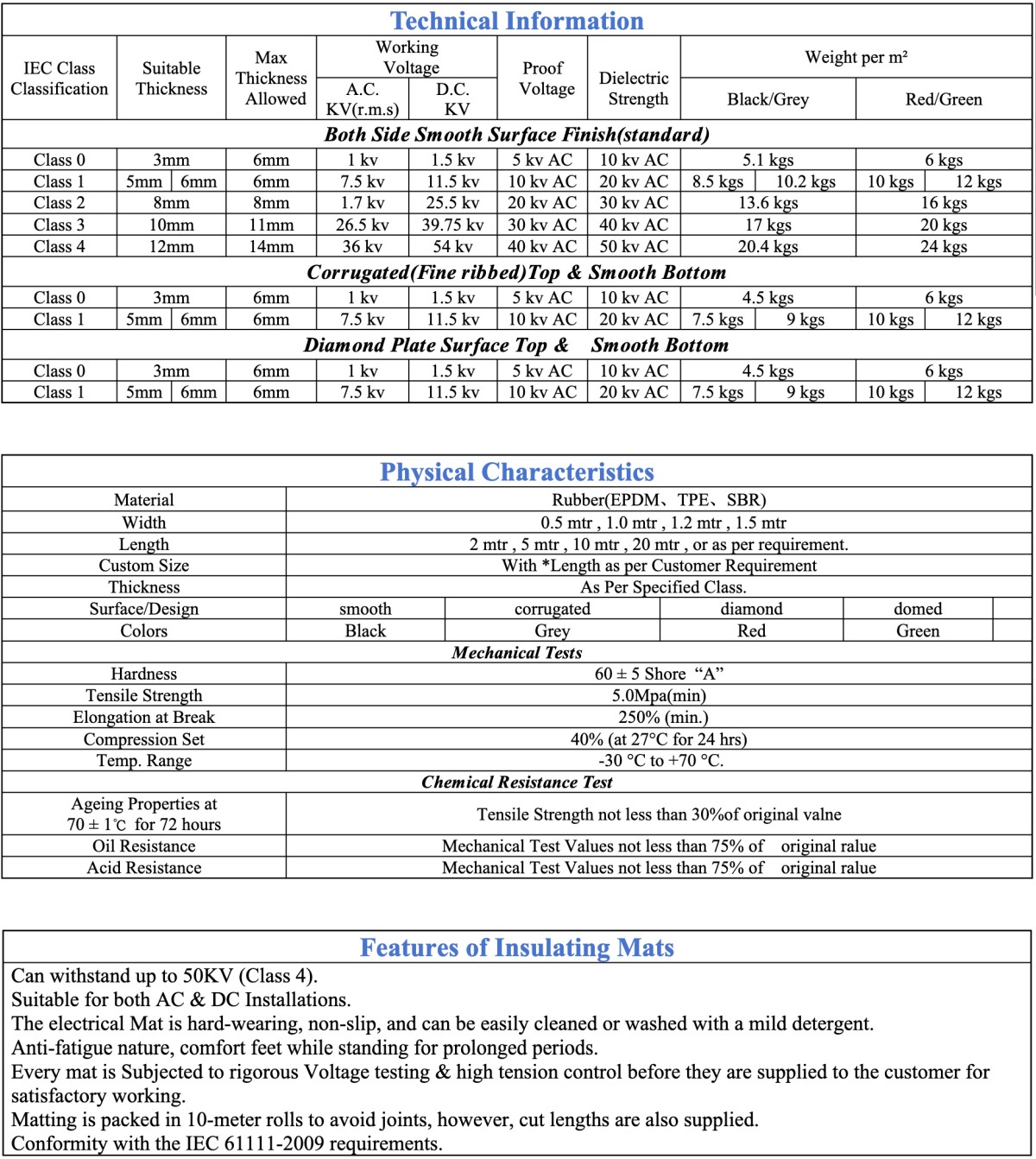

Switchboard Mat Technical Specifications

Surface Options of Electrical Insulating Mat

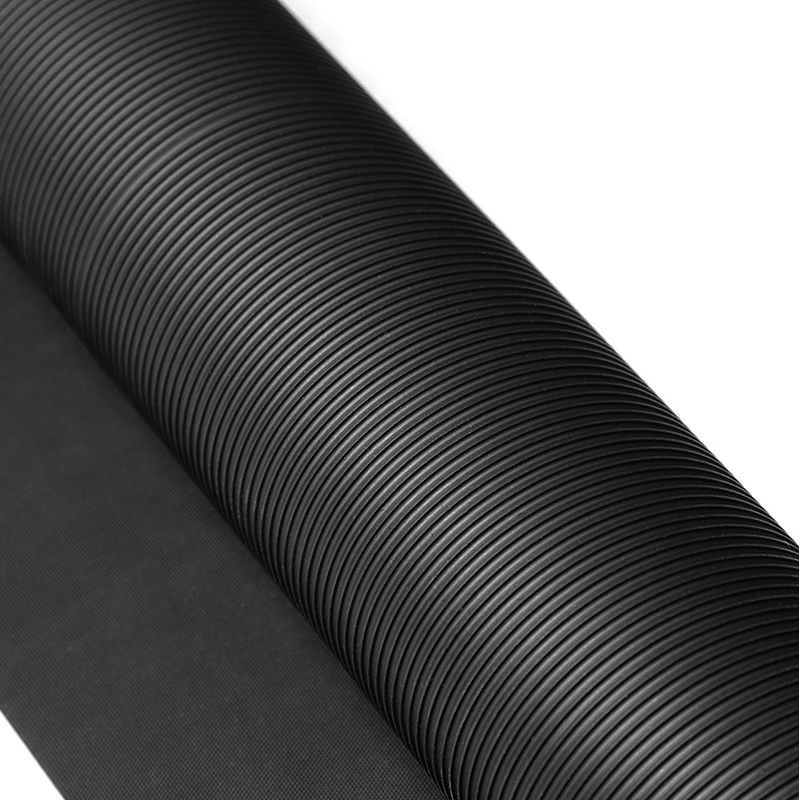

Corrugated Top & Smooth Finish Bottom

The corrugated top and smooth bottom structure provides a textured working surface with a flat bottom finish. This design is suitable for electrical areas where surface structure is required.

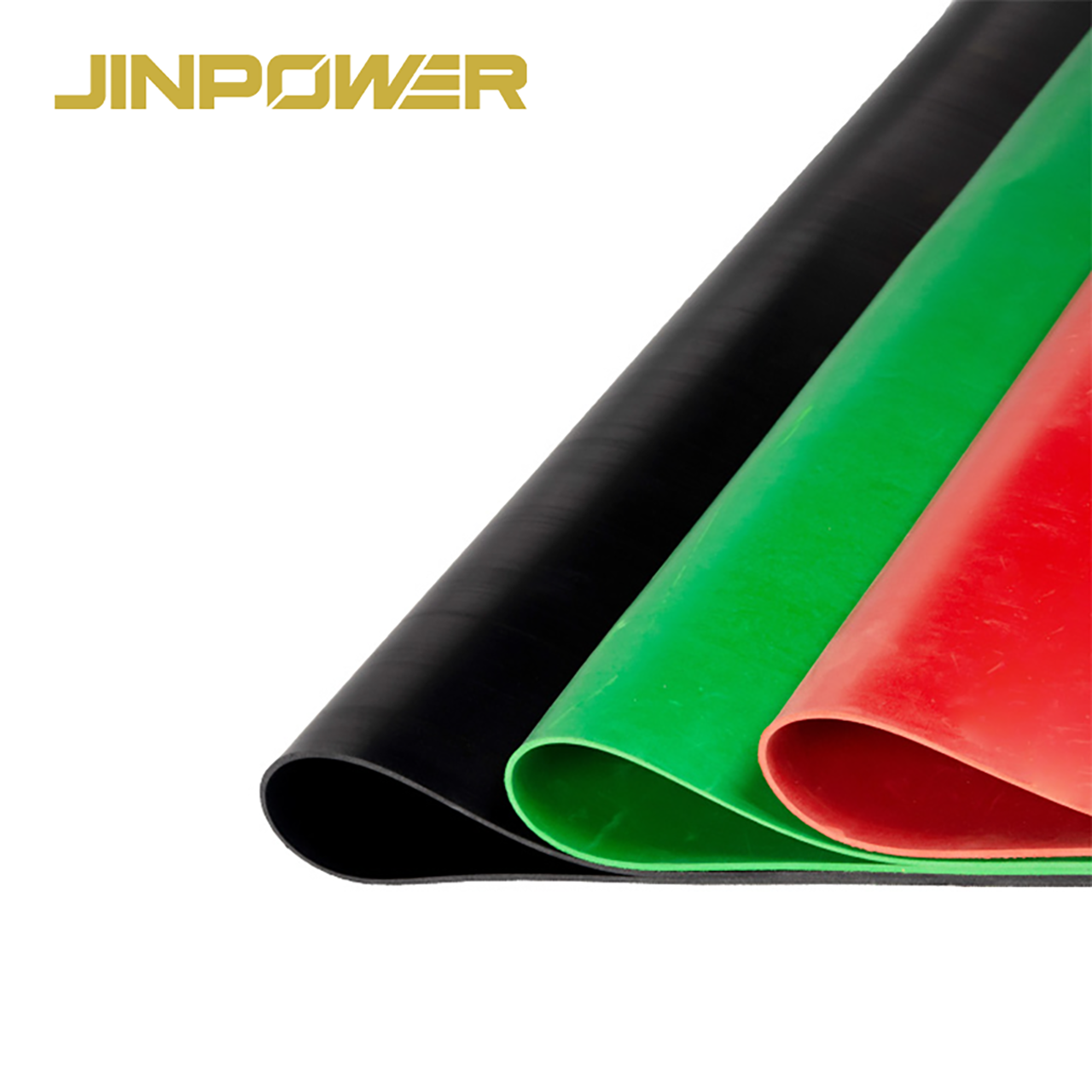

Smooth Finish Top & Bottom

The smooth finish on both sides provides a clean and flat surface design for electrical installation areas.

Available Surface Designs

• Smooth
• Corrugated

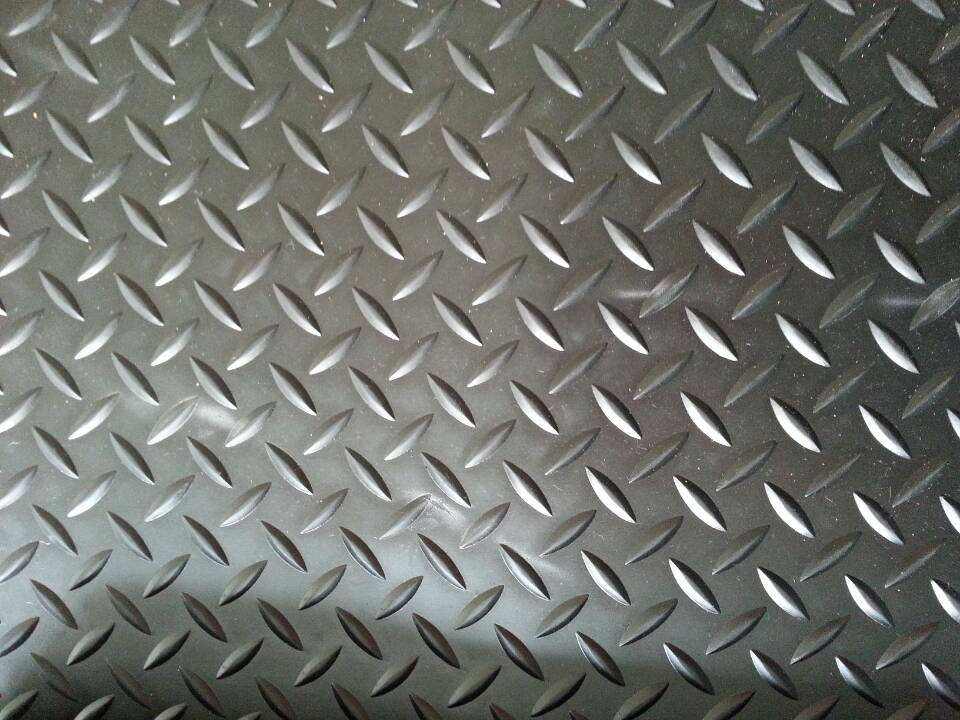

• Diamond

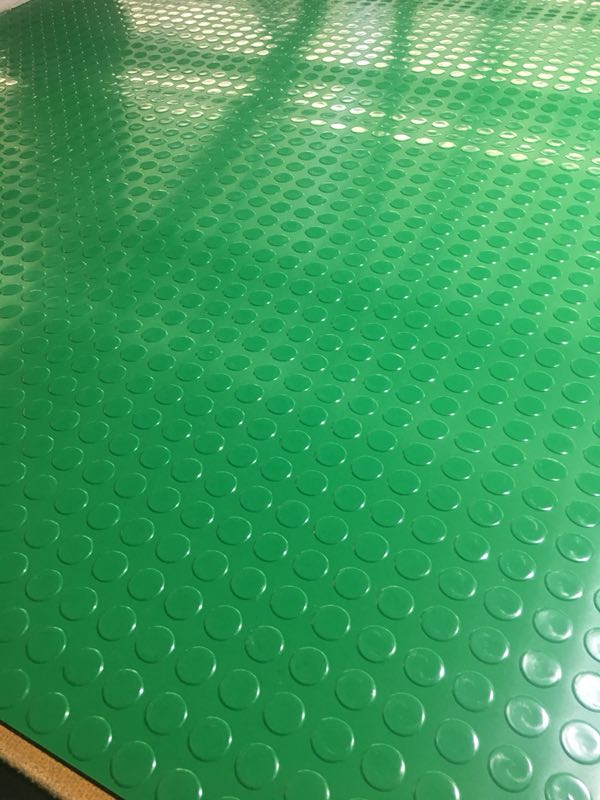

• Domed

Applications of Switchboard Mat

Switchboard mats are commonly used in electrical workplaces where insulation protection is required around electrical equipment.

Switchgear Rooms

Installed in front of switchgear and electrical cabinets to provide an insulated working surface for operation and maintenance activities.

Power Distribution Rooms

Suitable for areas around distribution panels, control cabinets and electrical equipment where additional insulation protection is required.

Substations

Used around electrical equipment in substations to support safer working environments for electrical personnel.

Industrial Electrical Facilities

Suitable for factories, production facilities and industrial maintenance areas with electrical control equipment.

Mechanical Performance of Switchboard Mat

JINPOWER electrical insulating mats are tested for mechanical performance to maintain stable physical properties during long-term use in electrical environments.

Chemical Resistance Performance

For industrial electrical applications, insulating mats may be exposed to different working environments. JINPOWER electrical insulating mats are evaluated through ageing, oil resistance and acid resistance tests.

Quality Control of JINPOWER Electrical Safety Products

JINPOWER focuses on stable product quality and consistent manufacturing for global electrical safety equipment buyers.

Each batch of products follows production quality control procedures to ensure stable material performance, dimensional consistency and reliable supply for distributors and project customers.

• Material inspection
• Product specification verification
• Performance testing according to product requirements
• Technical documentation support

Why Choose JINPOWER Switchboard Mat

Electrical Safety Equipment Manufacturer

JINPOWER specializes in electrical safety products including insulating mats, grounding equipment, voltage detection equipment and electrical protection products.

Customized Production Capability

We support customized production according to customer requirements, including:

• Customized width and length
• Different thickness options
• Surface design selection
• Color options
• Packaging requirements

Support for Global Buyers

JINPOWER works with electrical safety distributors, engineering companies and industrial buyers worldwide by providing product information, technical support and customized supply solutions.

OEM and Bulk Supply Service

For distributors and project suppliers, JINPOWER provides OEM and bulk supply options for electrical insulating mats.

Available customization options include:

• Product dimensions
• Surface structure
• Color selection
• Packaging customization

Please contact JINPOWER with your product requirements, application details and quantity information for a suitable supply solution.

Frequently Asked Questions About Switchboard Mat

What is a switchboard mat used for?

A switchboard mat is installed around electrical panels, switchgear and distribution equipment to provide an insulated working surface for electrical personnel.

What IEC classes are available for JINPOWER switchboard mats?

JINPOWER electrical insulating mats are available in IEC Class 0, Class 1, Class 2, Class 3 and Class 4 options with different thickness and voltage ratings.

What thicknesses can you supply?

Available thickness options include 3mm, 5mm, 8mm, 10mm and 12mm according to insulation class requirements.

Can JINPOWER customize electrical insulating mats?

Yes. JINPOWER supports customized sizes, surface designs, colors and packaging according to customer requirements.

What documents can you provide?

JINPOWER can provide product specifications and technical documents to support customer evaluation and procurement.

Request Switchboard Mat

Looking for electrical insulating mats for your project or product portfolio?

Please send us:

• Required IEC class
• Size and thickness requirements
• Application environment
• Order quantity

JINPOWER will provide suitable switchboard mat solutions for your electrical safety requirements.
